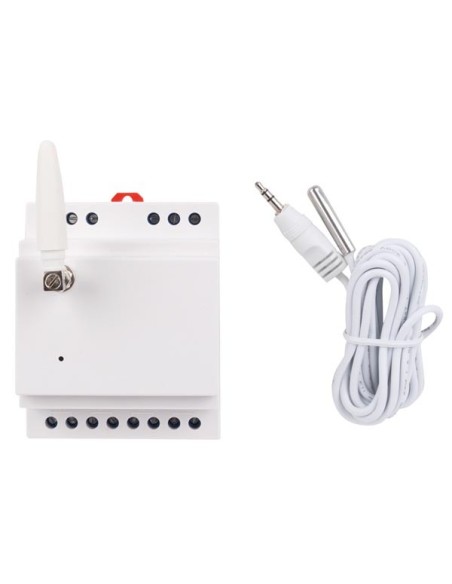

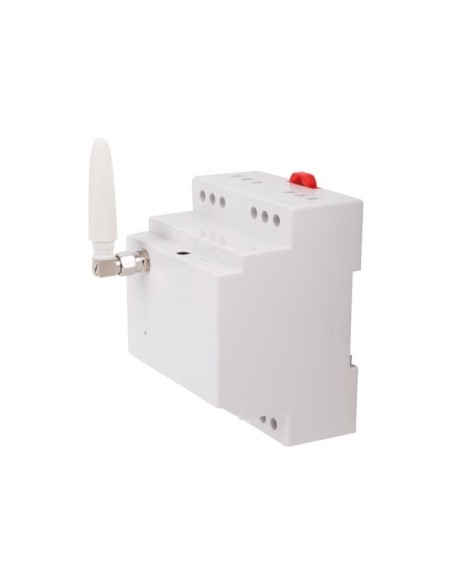

DIN RAIL GSM CONTROL MODULE - 1 CHANNEL
E300GSM
Out-of-Stock
€99.96
Tax included
DIN RAIL GSM CONTROL MODULE - 1 CHANNEL
E300GSM is a GSM Power Control working with SIM card. Use your mobile phone to control appliances, as a gate opener via SMS, remote power control, security alarm etc.
Specification(s):
Specification(s):
- remote power control: turn on/off power by SMS or calling (charges from your mobile provider may apply)
- compact transformer: 230 VAC input, both 230 VAC and 12 VDC output, no need for extra power adaptor
- works with external temperature sensor (included), supports temperature alarm and thermostat power control
- schedule or timer control: auto on/off power according to schedule or delay time
- sensor alarm: two lines sensor input and one 12 VDC output
- device activates automatically when triggered through wired sensor on 230 VAC or 12 VDC
- DIN rail
- GSM antenna included
- Physical properties
- Number of channels: 1
- Length sensor wire: 2 m
- Electrical data
- Maximum output current VDC: 200 mA
- Maximum current rating: 16 A
- Maximum power rating: 3500 W
- Output frequency rating: 50/60 Hz
- General data
- Number of DIN modules: 1
- Technical data
- DIN rail: Yes
- GSM frequency: 1800 MHz, 1900 MHz, 850 MHz, 900 MHz
- Environmental data
- Number of master users: 1
- Number of users: 4
- Multiple users: Yes
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Electrical connections
- Input wired sensor: NO and NC
- IT connections
- Compatible mobile networks: 2G, 3G
- SIM size: Standard SIM
- SIM card slot: Yes
- Power supply
- Input frequency rating: 50/60 Hz
- Input voltage rating VAC: 110-250 V
- Output voltage rating VAC: 110-250 V
- Output voltage rating VDC: 12 V
- Included
- External antenna: No
- Product basic info
- Colour: White
- Depth: 70 mm
- Height: 73 mm
- Weight: 222 g
- Width: 90 mm
- EAN: 5410329686222
