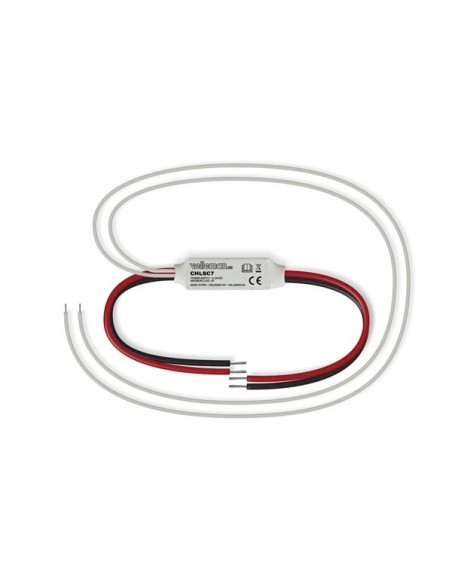

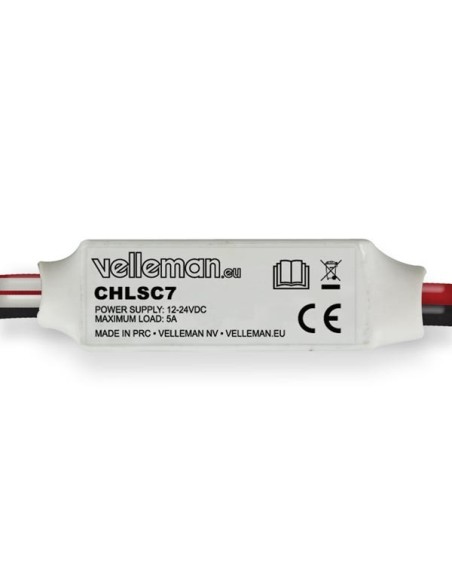

MINI LED DIMMER CONTROLLED BY EXTERNAL PUSH BUTTON

Reference CHLSC7

Description
Product Details

This mini LED dimmer is designed to be used with push buttons in residential buildings. The dimmer fits perfectly in a standard mounting box. The dimmer can be controlled by only 1 push button. There are 3 built-in protection circuits for incorrect polarity, overload, and short circuit.

Specification(s):

ideal for use with single colour LED strips. See our [link url=http://www.velleman.eu/products/list/?id=373414&more=1]website[/link].
dimming operation via an external push button
short push: on-off
long push: dimming
memory function: the device remembers the last used function on power loss. On power restore, the last used function is automatically activated.
can be used with:
Niko® push buttons
Bticino® push buttons
[b]3 built-in protections[/b]:
incorrect cable polarity
overload
short circuit

Feature(s):

Physical properties
Cable length: 0.2 m
LED dimmer height: 13 mm
LED dimmer depth: 8 mm
LED dimmer width: 40 mm
Electrical data
Maximum LED current rated load: 5 A
Maximum current rating: 5 A
LED output short circuit: No
Overload protection: No
Short-circuit proof: No
Reverse polarity: No
PWM frequency rating: ± 1000 Hz
Set-up options
Memory function: No
Operational properties
Restart after protection: No
Power supply
Maximum input current rating: 5 A
Input voltage rating VDC: 12-24 V
Included
On/off switch: No
Product basic info
Colour: White
Weight: 15 g

EAN: 5410329585884
