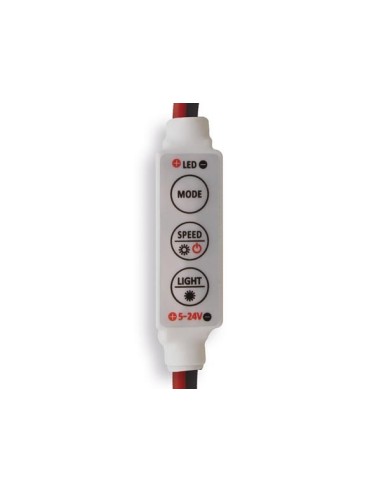

MINI LED DIMMER
MINI LED DIMMER
MINI LED DIMMER
MINI LED DIMMER

MINI LED DIMMER

CHLSC3
Available
€11.95
Tax included
MINI LED DIMMER


Specification(s):
  • ideal for use with single colour LED strips. See our [link url=http://www.velleman.eu/products/list/?id=373414&more=1]website[/link].
  • 3 functions:
  • switching: on-off
  • dimming: 9 levels
  • built-in stand-alone programs: fade and flashing animations
  • memory function: the device remembers the last used function on power loss. On power restore, the last used function is automatically activated.
  • use only with a power supply of max. 60 W / 12 V or 120 W / 24 V
Feature(s):
  • Physical properties
  • LED dimmer height: 13 mm
  • LED dimmer depth: 8 mm
  • Number of dimming levels: 9
  • LED dimmer width: 40 mm
  • Electrical data
  • Maximum LED current rated load: 5 A
  • Maximum current rating: 5 A
  • LED output short circuit: No
  • Overload protection: No
  • Short-circuit proof: No
  • Reverse polarity: No
  • PWM frequency rating: ± 125 Hz
  • Set-up options
  • Memory function: No
  • Operational properties
  • Restart after protection: No
  • Power supply
  • Maximum input current rating: 5 A
  • Input voltage rating VDC: 5-24 V
  • Included
  • On/off switch: Yes
  • Product basic info
  • Colour: White
  • Weight: 15 g


  • EAN: 5410329553005
