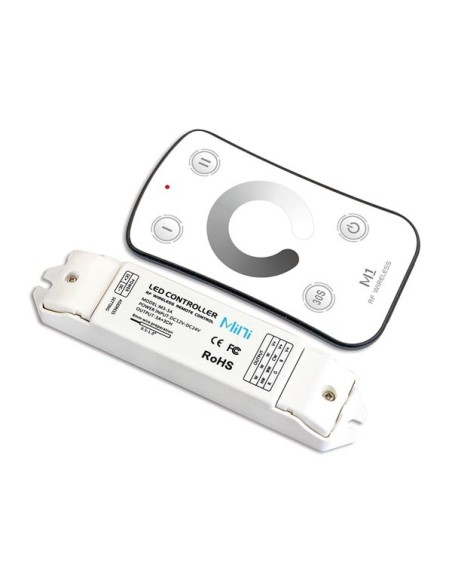

SINGLE CHANNEL LED DIMMER - WITH RF REMOTE CONTROLLER
SINGLE CHANNEL LED DIMMER - WITH RF REMOTE...

SINGLE CHANNEL LED DIMMER - WITH RF REMOTE CONTROLLER

CHLSC13
Available
€59.96
Tax included
SINGLE CHANNEL LED DIMMER - WITH RF REMOTE CONTROLLER


Specification(s):
  • ideal for use with single colour LED strips. See our [link url=https://www.velleman.eu/products/list/?id=456520]website[/link]
  • controlled through radio frequency (RF) remote (incl.)
  • RF remote control:
  • 2 buttons for scene modes
  • ON and OFF button
  • 1 delay OFF button (30 seconds)
  • touch dimming circle
  • use only with a power supply of max. 100 W / 12 V or 200 W / 24 V
Feature(s):
  • Physical properties
  • Number of channels: 1
  • Light colour range LED: Single colour
  • RF remote height: 9 mm
  • Depth RF remote: 104 mm
  • RF remote width: 58 mm
  • LED dimmer height: 20 mm
  • LED dimmer depth: 135 mm
  • LED dimmer width: 30 mm
  • RF remote weight: 42 g
  • Number of LED outputs: 3
  • Weight LED dimmer: 47 g
  • Electrical data
  • Maximum LED output current per output: 3 A
  • Maximum LED output current rating: 9 A
  • Protection: Overload, Short-circuit
  • Output power rating 12 V: 108 W
  • Output power rating 24 V: 216 W
  • LED dimmer output type: RF, PWM-CV
  • Reverse polarity: Yes
  • Technical data
  • Protocol: Manual
  • Dimmable: No
  • Radio frequency: 433.92 MHz
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Operating temperature: -30-55 °C
  • Operational properties
  • Instruction manual languages: English
  • Remote distance: 40 m
  • Restart after protection: No
  • Connections
  • Wire size: 2.5 mm²
  • Power supply
  • Input voltage rating VDC: 12-24 V
  • Included
  • On/off switch: Yes
  • Product basic info
  • Colour: White
  • Material: PVC (polyvinyl chloride)


  • EAN: 5410329605209
