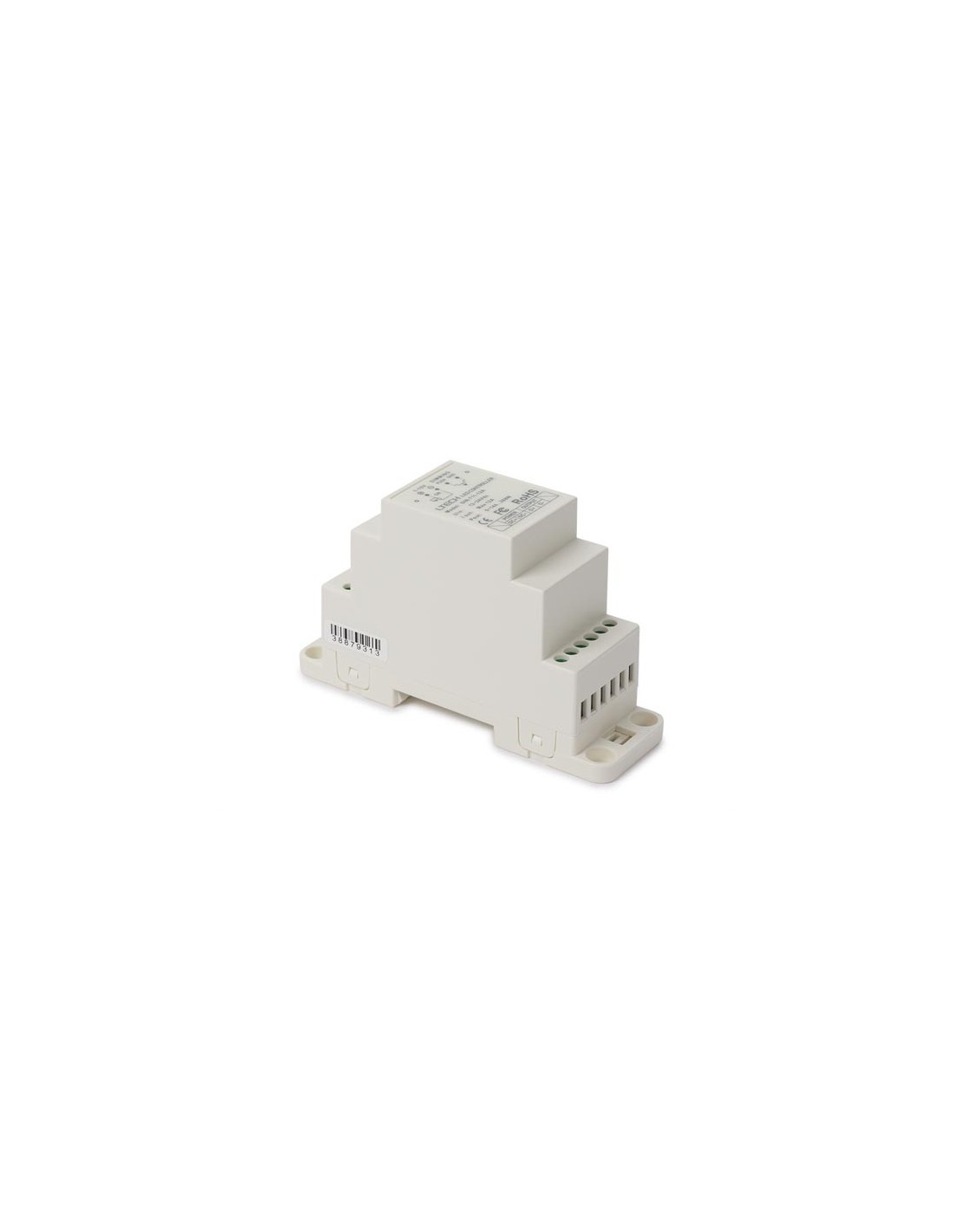

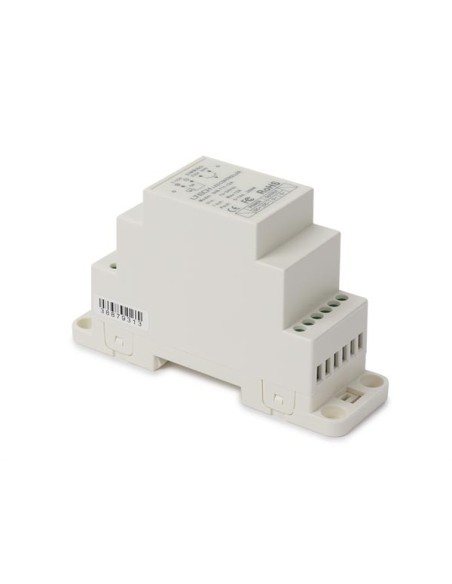

SINGLE CHANNEL LED DIMMER FOR DIN RAIL
CHLSC11
Available
€89.95
Tax included
SINGLE CHANNEL LED DIMMER FOR DIN RAIL
Professional DIN rail dimmer for LED strips or dimmable constant voltage LED modules. This dimmer is controllable with 0-10 V, 1-10 V, 10 V PWM signal or push button. The maximum load is 12 A current. The PWM dimming curve is adapted to the human eye.
Specification(s):
Specification(s):
- ideal for use with LED strips. See our [link url=https://www.velleman.eu/products/list/?id=456520]website[/link].
- compatible with :
- 0-10 V, 1-10 V and 10 V PWM input
- push button
- general:
- functions: DIN-Rail
- electronics:
- input voltage: 12-24 VDC
- power consumption: 288 W
- LED output current (max per output): 12 A
- current max.: 12 A
- power supply: not applicable
- LED output voltage: 12-24 V
- output power: 144 W @ 12 V, 288 W @ 24 V
- lighting:
- colour range: single colour
- control:
- output: PWM-CV
- protocol: 0-10 V, 1-10 V, push button
- dimming range: 0-100%
- dimming curve: linear
- number of channels: 1
- wire type: 2.5 mm²
- environmental:
- operating temperature: -30-55 °C
- approvals:
- CE: yes
- FCC: FCC part 15:2013
- RoHS2: EPA3050B:1996, EPA3052:1996, EN1122B:2001, EPA3060A:1996, EPA7196A:1992, EPA3540C:1996, EPA8270D:2007, IEC62321:2008
- ingress protection: IP20
- protection:
- reverse polarity: yes
- LED output short circuit: yes
- overload: yes
- restart after protection: yes
- output:
- output voltage: 12 V, 24 V
- warranty:
- warranty: 5 year
- weight & dimensions:
- width x height x depth: 3.70 x 6.70 x 11.20 cm
- weight: 0.12 kg
- EAN: 5410329598839
