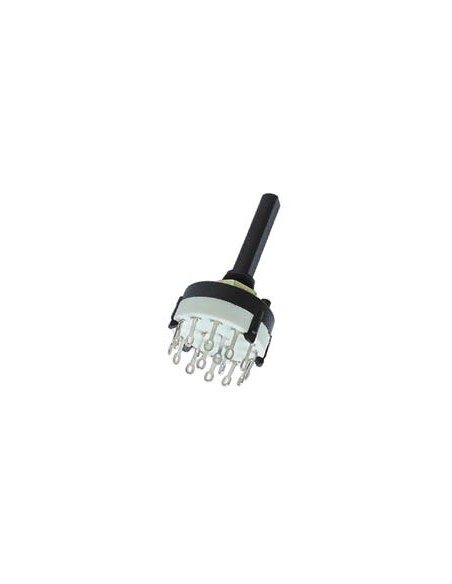

ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS
ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS
ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS
ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS

ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS

8404-4
Available
€3.96
Tax included
ROTARY SWITCH 4P / 3 POSITIONS SOLDER CONNECTIONS


Specification(s):
  • type: "C" = for PCB mounting
Feature(s):
  • contact ratings:
  • 50 V (AC or DC)
  • 0.3 A continuous
  • electrical life: min. 10 000 cycles at full load, 15 ~ 20 cycles/min
  • contact resistance: max. 50 mohm
  • dielectric strength: 500 Vrms at sea level
  • insulation resistance: min. 100 Mohm at 500 Vdc
  • torque: 0.5 ± 0.2 kgf/cm
  • operating temperature: -20 °C to +85 °C
  • stops: the stop can be placed in 12 different positions (= 30° indexing)
  • materials:
  • shaft: glass-filled nylon
  • cover: glass-filled nylon
  • base: glass-filled nylon
  • contacts: brass, silver-plated
  • terminals: brass, silver-plated
  • hardware nut: zinc, nickel-plated
  • lock washer: steel, zinc-plated
  • stop ring: brass, nickel-plated
  • Ø: 6 mm


  • EAN: 5410329268572
