R1600G
Available
€10.95
Tax included

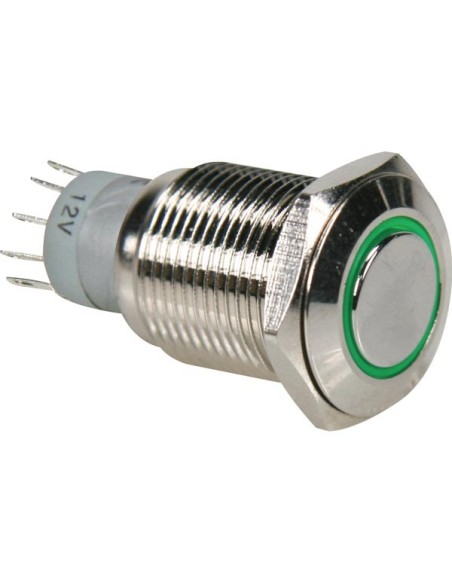

ROUND METAL PUSH BUTTON SPDT 1NO 1NC - GREEN RING


Specification(s):
  • illumination by means of 12V LED lighting
  • lifetime: > 40 000h
Feature(s):

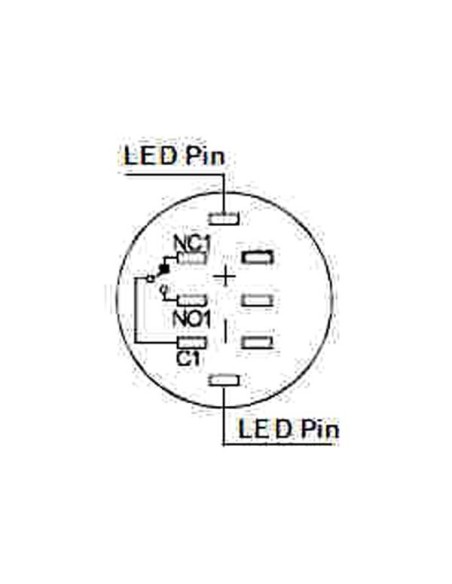

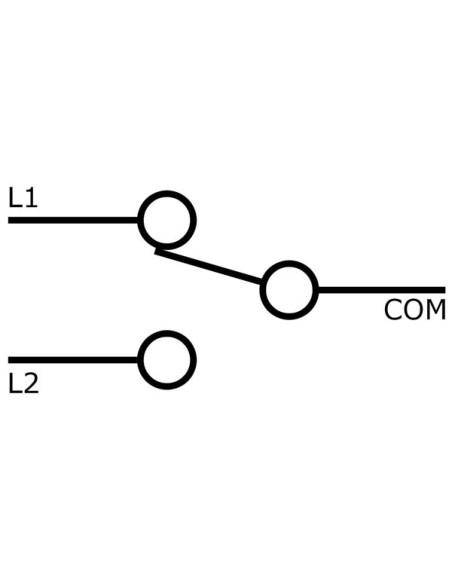

  • SPDT 1NO 1NC
  • colour: green
  • type: (on)-off
  • operating temperature: -20 °C ~ +70 °C
  • operating humidity: 45 ~ 85 % RH
  • insulation resistance: > 1000M ohms
  • contact resistance: < 50M ohms
  • contact material: silver alloy
  • mechanical life: 1 000 000 cycles
  • electrical life: 50 000 cycles
  • dielectric strength:
  • between terminals of the same pole: 1000 VAC
  • between terminal of different poles: 2000 VAC
  • between terminal and lamp terminal: 1500 VAC
  • body material: nickel-plated brass
  • IP rating: IP40
  • max. voltage:
  • 24 VDC / 1 A
  • 230 VAC / 0.5 A

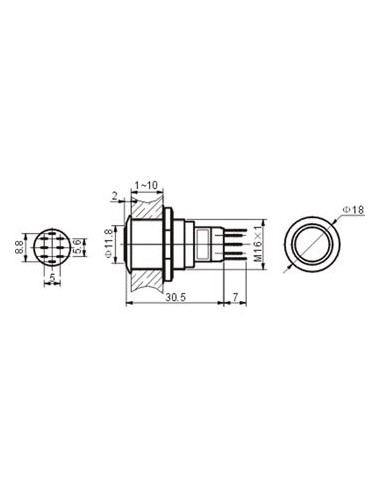

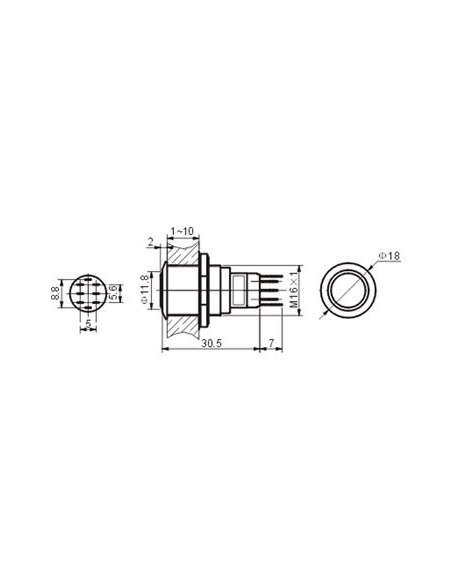

  • mounting hole: Ø 16 mm


  • EAN: 5410329380649
