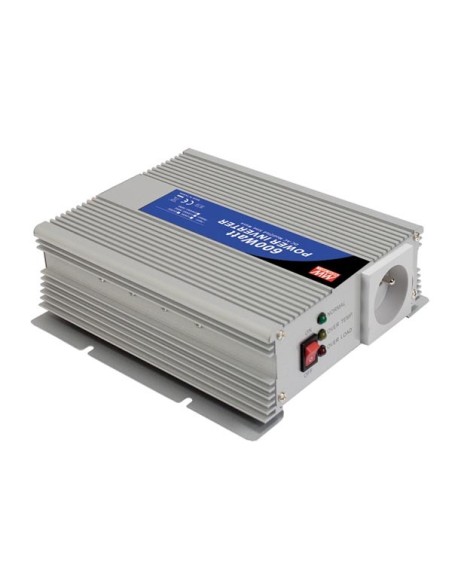

MEANWELL - MODIFIED SINE WAVE DC-AC POWER INVERTER 12 V - 600 W - FRENCH SOCKET

Reference A301-600-TE

Specification(s):

12 VDC input
power ON-OFF switch
input voltage range: -15% - +25%
output voltage regulation: ± 10%
protections: battery low alarm - battery low shutdown - over-voltage - over-temperature - output short - input polarity reverse - overload
topology: microprocessor
approvals: e13/ CE
1 year warranty
compact dimensions
modified sine wave
output is short-circuit protected
battery-low alarm
battery-low shutdown
thermal + overload protection
child-safe

Feature(s):

output:
safety model no.: A-300-600W
AC voltage: 230 V
rated power: 600 W
surge power: 1200 W
waveform: modified sine wave
frequency: 50 Hz ±1%
AC regulation: ± 10%
standard receptacles: TYPE-3* 1ea
LED indicator: green LED for power on; red LED for power failure status
input:
DC current: 60 A
no load current draw: 0.6 A
DC voltage: 12 V
voltage range: 10-15 VDC
efficiency: 82%
DC connector: 900 mm battery clip*1ea
fuse: 25 A * 3ea
protection:
battery low alarm: 10 ± 0.5 V
battery low shutdown: 9.5 ± 0.5 V
overload: >750 W shut down o/p voltage, re-power on to recover
over-voltage: 15-17 V
over-temperature: 60 ± 5 °C / 140 ± 9 °F
output short: shut-off
environment:
working temperature: 0 to +30 °C @100% load, 40 °C @ 50% load
working humidity: 20% - 90% RH non-condensing
storage temperature, humidity: -30 to +70 °C / -22 to +158 °F, 10 - 95% RH
temperature coefficient: 0.05% / °C (0-50 °C)
safety & EMC:
isolation resistance: input-output: 100 MOhm min. / 500 VDC / 25 °C / 70% RH
EMI conduction & radiation: compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE
EMS immunity: compliance to EN61000-4-2,3
LVD: compliance to EN60950
other:
MTBF: 100 000 hrs min. MIL-HDBK-217F (25 °C)
dimensions (L x W x H): 210 x 173 x 65 mm
cooling: by fan, >50% load fan on
applications: home appliance, power tools, office and portable equipment, vehicles, etc.
