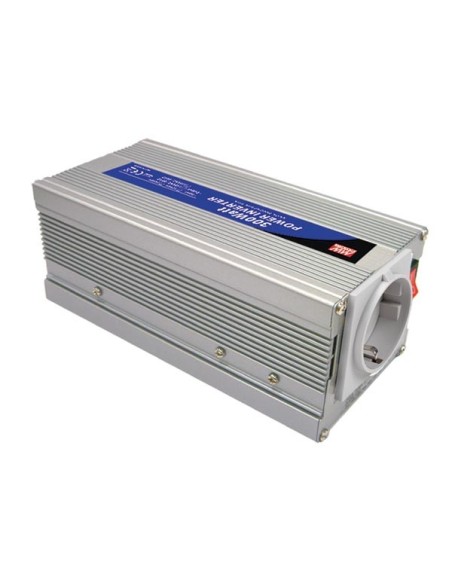

MEANWELL - MODIFIED SINE WAVE DC-AC POWER INVERTER - 12 V - 300 W - GERMAN PLUG
A301-300-F3
Available
€129.91
Tax included
MEANWELL - MODIFIED SINE WAVE DC-AC POWER INVERTER - 12 V - 300 W - GERMAN PLUG
Specification(s):
- 12 VDC input
- power ON-OFF switch
- input voltage range: -15% - +25%
- output voltage regulation: ± 10%
- protections: battery low alarm - battery low shutdown - over-voltage - over-temperature - output short - input polarity reverse - overload
- topology: microprocessor
- approvals: e13/ CE
- 1 year warranty
- compact dimensions
- modified sine wave
- output is short-circuit protected
- battery-low alarm
- battery-low shutdown
- thermal + overload protection
- child-safe
- output:
- safety model no.: A-300-300W
- AC voltage: 230 V
- rated power: 300 W
- surge power: 600 W
- waveform: modified sine wave
- frequency: 50 Hz ±1%
- AC regulation: ± 10%
- standard receptacles: TYPE-3
- LED indicator: green LED for power on; red LED for power failure status
- input:
- DC current: 35 A
- no load current draw: 0.36 A
- DC voltage: 12 V
- voltage range: 10-15 VDC
- efficiency: 82%
- DC connector: cigarette plug, battery clip
- fuse: battery cord 35 A, cigarette plug 15 A
- protection:
- battery low alarm: 10 ± 0.5 V
- battery low shutdown: 9.5 ± 0.5 V
- over-voltage: 15-17 V
- over-temperature: 45 ± 5 °C / 113 ± 9 °F
- output short: shut-off
- environment:
- working temperature: 0 to +30 °C @100% load, 40 °C @ 50% load
- working humidity: 20% - 90% RH non-condensing
- storage temperature, humidity: -30 to +70 °C / -22 to +158 °F, 10 - 95% RH
- temperature coefficient: 0.05% / °C (0-50 °C)
- safety & EMC:
- isolation resistance: I/P-O/P:100M Ohm min./ 500 VDC / 25 °C / 70% RH
- EMI conduction & radiation: compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE
- EMS immunity: compliance to EN61000-4-2,3
- LVD: compliance to EN60950
- other:
- MTBF: 200 000 hrs min. MIL-HDBK-217F (25 °C)
- dimensions (L x W x H): 165 x 88 x 74 mm
- cooling: >100 W or > 40 °C (NTC) fan on
- applications: home appliance, power tools, office and portable equipment, vehicles, etc.
- EAN: 8720207814959
