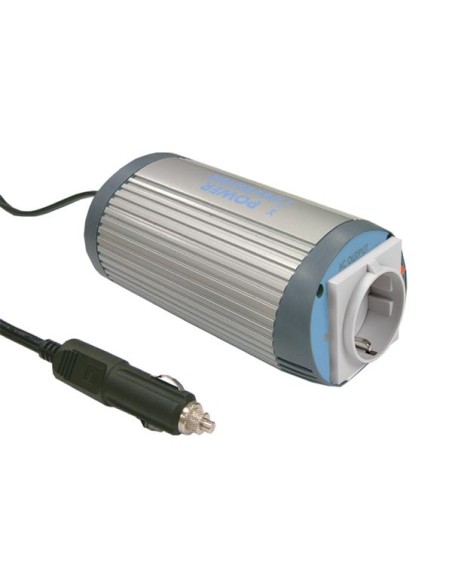

MEANWELL - MODIFIED SINE WAVE DC-AC POWER INVERTER 12 V - 150 W - GERMAN SOCKET

A301-150-F3
Available
€114.44
Tax included
MEANWELL - MODIFIED SINE WAVE DC-AC POWER INVERTER 12 V - 150 W - GERMAN SOCKET


Specification(s):
  • 12 VDC input
  • power ON-OFF switch
  • input voltage range: -15% - +25%
  • output voltage regulation: ± 10%
  • protections: battery low alarm - battery low shutdown - overvoltage - over temperature - output short-circuit - input polarity reverse - overload
  • topology: microprocessor
  • approvals: e13/ CE
  • 1 year warranty
  • compact dimensions
  • modified sine wave
  • output is short-circuit protected
  • battery-low alarm
  • battery-low shutdown
  • thermal + overload protection
  • child-safe
Feature(s):
  • output:
  • safety model no.: A-300-150W
  • AC voltage: 230 V
  • rated power: 150 W
  • surge power: 3000 W
  • waveform: modified sine wave
  • frequency: 50 Hz ± 1%
  • AC regulation: ± 10%
  • standard receptacles: TYPE-3
  • LED indicator: dual colour indicators display for power on / failure status
  • input:
  • DC current: 15 A
  • no load current draw: 0.25 A
  • DC voltage: 12 V
  • voltage range: 10-15 VDC
  • efficiency: 78%
  • DC connector: 700 mm cigarette plug
  • fuse: 15 A
  • protection:
  • battery low alarm: 10 ± 0.5 V
  • battery low shutdown: 9.5 ± 0.5 V
  • over voltage: 15-17 V
  • over temperature: 60 ± 5 °C / 140 ± 9 °F
  • output short: shut-off
  • environment:
  • working temperature: 0 - +30 °C @100% load, 40 °C @ 50% load
  • working humidity: 20% - 90% RH non-condensing
  • storage temperature, humidity: -30 - +70 °C / -22 - +158 °F, 10 - 95% RH
  • temperature coefficient: 0.05% / °C (0-50 °C )
  • safety & EMC:
  • isolation resistance: input-output: 100 MOhm min. / 500 VDC / 25 °C / 70% RH
  • EMI conduction & radiation: compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE
  • EMS immunity: compliance to EN61000-4-2, 3
  • LVD: compliance to EN60950
  • other:
  • MTBF: 200.000 hrs min. MIL-HDBK-217F (25 °C)
  • dimensions (L x W x H: 165 x 94 x 69 mm
  • cooling: by air convection
  • applications: home appliance, power tools, office and portable equipment, vehicles, etc.


  • EAN: 8720207867801
