TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm
TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm
TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm
TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm

TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm

KRS0615
Out-of-Stock
€0.62
Tax included
TACTILE SWITCH 6 x 3.5mm HEIGHT : 4.2mm

The minimum purchase order quantity for the product is 5.


Specification(s):
  • applications:
  • for all types of electronic equipment such as telephones, audio instruments, TV sets, VCR's, ...
  • micro-miniature, lightweight
  • snap-in type: suitable for direct PCB mounting
Feature(s):

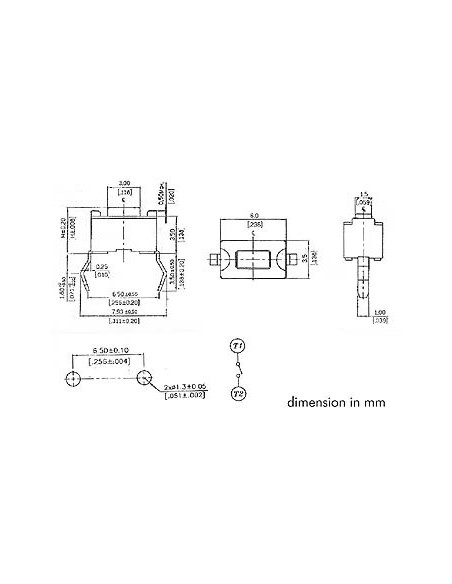

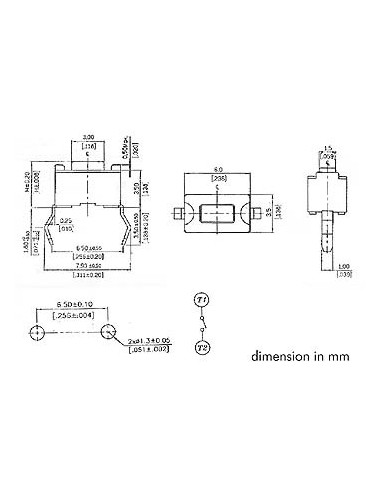

  • dimensions: 6 x 3.5mm
  • height: 4.2mm
  • rating: 12Vdc - 50mA
  • insulation resistance: > 100Mohm - 250Vdc
  • withstand voltage: 100Vac 1 minute
  • contact resistance: < 100mohm
  • soldering temperature: 255°C for max. 5 seconds
  • mechanical life: 500000 cycles
  • electrical life: 300000 cycles
  • ambient temperature range: -25°C to +70°C
  • ambient humidity range: < 85% RH
  • operating force: 130 to 160 ± 30gf


  • EAN: 5410329283445
