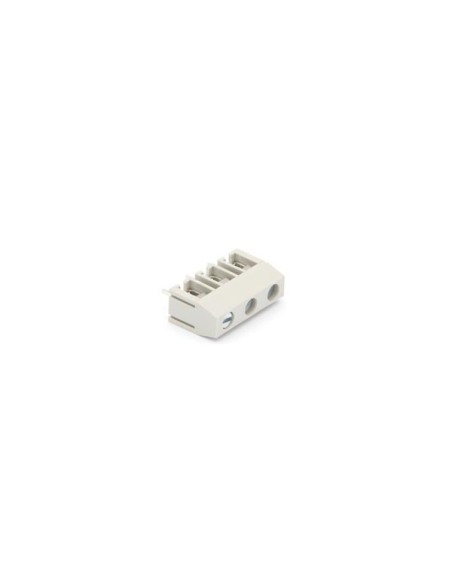

SCREW CONNECTOR PRINT, 3 POLES, 7.5mm PITCH
SCREWL03
Available
€1.71
Tax included
SCREW CONNECTOR PRINT, 3 POLES, 7.5mm PITCH
Specification(s):
- blocks are stackable
- Physical properties
- Diameter lead: 1 mm
- Stackable: Yes
- Shape: Square
- Contact material: Tin-plated brass
- Electrical data
- Dielectric strength voltage rating VAC: 500 V
- Maximum current per way: 17.5 A
- Insulation withstand voltage (VAC per min): 2000 V
- Voltage rating VAC per way: 300 V
- Technical data

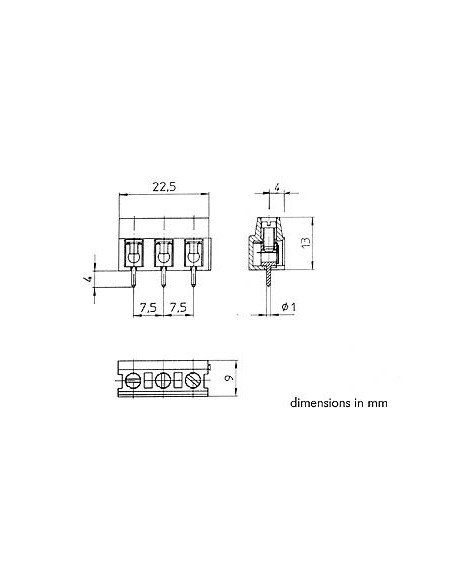

- Pitch: 7.5 mm
- Mounting type: PCB, Through hole
- Number of contacts: 3
- Flammability rating: UL 94 V-0
- Environmental data
- Operating temperature: -30-120 °C
- Operational properties
- Mounting hole diameter: 1.5 mm
- Connections
- Wire size AWG: 14-22 AWG
- Wire size: 2.5 mm²
- Electrical connections
- Connector shape: Straight
- IT connections
- Connection type: Screw connection
- Product basic info
- Colour: White
- Depth: 9 mm
- Height: 13 mm
- Weight: 3.74 g
- Width: 22.5 mm
- Material: Thermoplastic
- Additional material: Brass, PBT, Stainless steel, Steel
- EAN: 5410329217754
