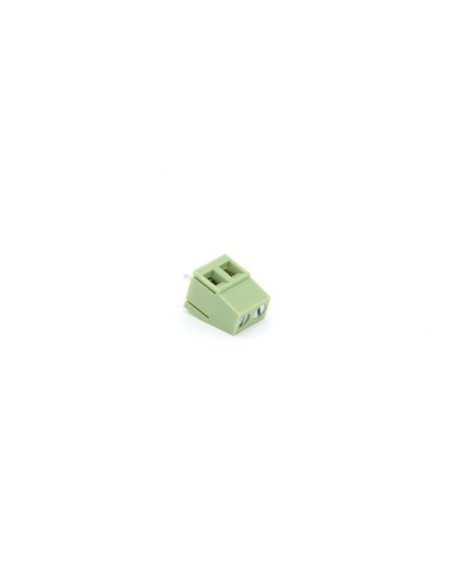

SCREW CONNECTOR PRINT, 2 POLES, CLAMPING TYPE, 5mm PITCH
SCREW02P
Available
€0.61
Tax included
SCREW CONNECTOR PRINT, 2 POLES, CLAMPING TYPE, 5mm PITCH
Specification(s):
- blocks are stackable
- Physical properties
- Diameter lead: 0.8 mm
- Stackable: Yes
- Shape: Square
- Contact material: Tin-plated brass
- Electrical data
- Minimum insulation resistance at 500 VDC: 500 megohm
- Dielectric strength voltage rating VAC: 2000 V
- Maximum current per way: 10 A
- Voltage rating VAC per way: 3000 V

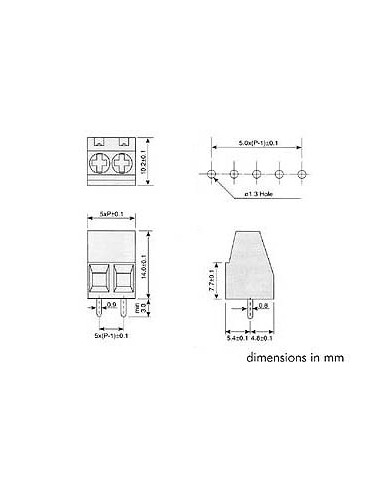

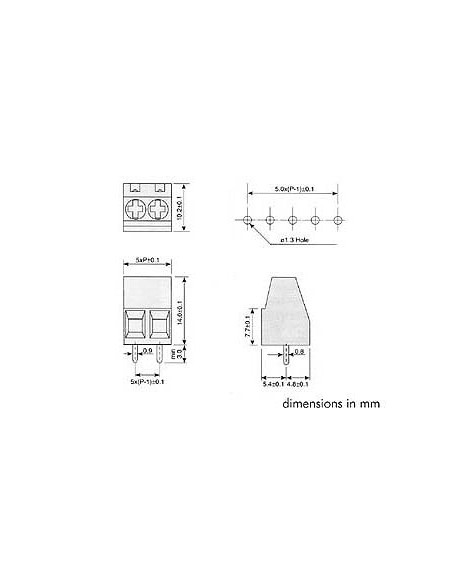

- Technical data
- Pitch: 5 mm
- Mounting type: PCB, Through hole
- Number of contacts: 2
- Flammability rating: UL 94 V-0
- Environmental data
- Operating temperature: -40-105 °C
- Operational properties
- Mounting hole diameter: 1.3 mm
- Connections
- Wire size AWG: 12-24 AWG
- Wire size: 2.5 mm²
- Electrical connections
- Connector shape: Straight
- IT connections
- Connection type: Clamping, Screw connection
- Product basic info
- Colour: Green
- Depth: 10 mm
- Height: 14 mm
- Weight: 2.58 g
- Width: 10 mm
- Material: Polyamide 66
- EAN: 5410329282523
