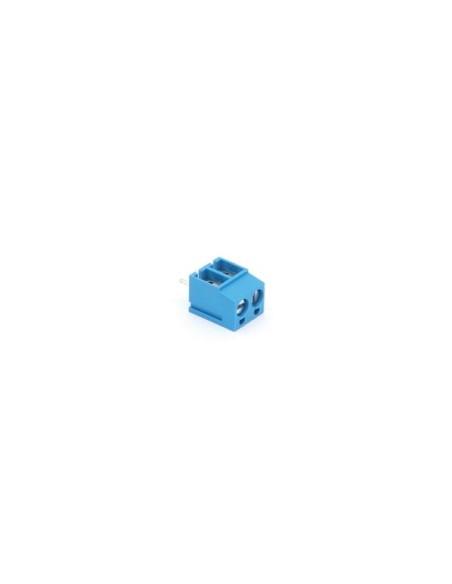

SCREW CONNECTOR PRINT, 2 POLES, BLUE
SCREW CONNECTOR PRINT, 2 POLES, BLUE
SCREW CONNECTOR PRINT, 2 POLES, BLUE
SCREW CONNECTOR PRINT, 2 POLES, BLUE

SCREW CONNECTOR PRINT, 2 POLES, BLUE

SCREW02
Available
€0.56
Tax included
SCREW CONNECTOR PRINT, 2 POLES, BLUE

The minimum purchase order quantity for the product is 25.


Specification(s):
  • blocks are stackable
Feature(s):
  • Physical properties
  • Diameter lead: 1 mm
  • Stackable: Yes
  • Shape: Square
  • Contact material: Tin-plated brass
  • Electrical data
  • Dielectric strength voltage rating VAC: 2000 V
  • Maximum current per way: 16 A
  • Voltage rating VAC per way: 300 V
  • Technical data
  • Pitch: 5 mm
  • Mounting type: PCB, Through hole
  • Number of contacts: 2
  • Flammability rating: UL 94 V-0
  • Environmental data
  • Operating temperature: -30-120 °C
  • Soldering tip temperature: 260 °C
  • Operational properties
  • Mounting hole diameter: 1.5 mm
  • Connections
  • Wire size AWG: 12-22 AWG
  • Wire size: 2.5 mm²
  • Electrical connections
  • Connector shape: Straight
  • IT connections
  • Connection type: Screw connection
  • Product basic info
  • Colour: Blue
  • Depth: 9 mm
  • Height: 13.5 mm
  • Weight: 2.4 g
  • Width: 15 mm
  • Material: Glass-filled polyester
  • Additional material: PBT, Stainless steel


  • EAN: 5410329278724
