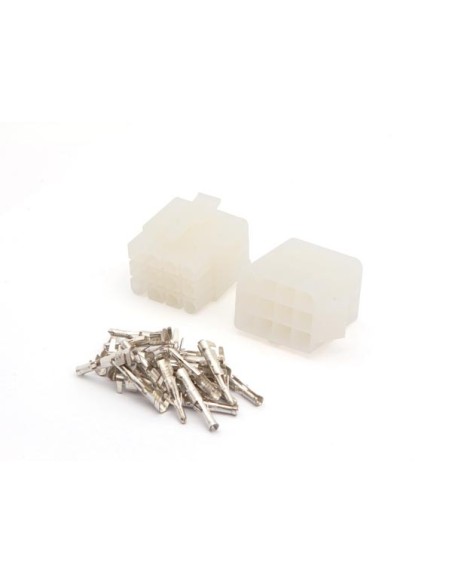

WIRE TO WIRE CONNECTOR SET 6.2mm / 3 x 4 POLES
WIRE TO WIRE CONNECTOR SET 6.2mm / 3 x 4 POLES

WIRE TO WIRE CONNECTOR SET 6.2mm / 3 x 4 POLES

WTWCS3X4
Available
€5.95
Tax included
WIRE TO WIRE CONNECTOR SET 6.2mm / 3 x 4 POLES


Specification(s):
  • for cables of 0.5 to 2.1 mm² / 14 to 20 AWG
  • ratings: 50 V / 10 A
  • can be crimped with: [product name=VTNCT]VTNCT[/product]
Feature(s):
  • number of contacts: 3 x 4 poles
  • contact resistance: 10 mohm max.
  • insulator resistance: 1000 Mohm min.
  • dielectric strength: 1500 VAC for 1 minute
  • current rating: 8-13 A
  • voltage rating: 300 VAC
  • pitch: 6.2 mm / 0.24"
  • material:
  • housing: nylon UL 94V-0
  • contact: phosphor bronze (tin-plated)


  • EAN: 5410329231392
