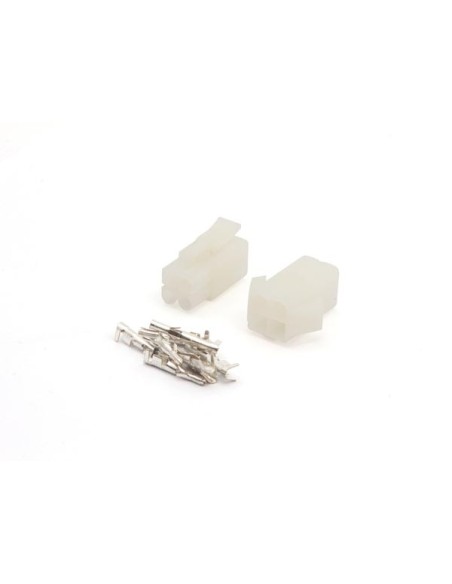

WIRE TO WIRE CONNECTOR SET 6.2mm / 2 x 2 POLES
WIRE TO WIRE CONNECTOR SET 6.2mm / 2 x 2 POLES

WIRE TO WIRE CONNECTOR SET 6.2mm / 2 x 2 POLES

WTWCS2X2
Available
€2.86
Tax included
WIRE TO WIRE CONNECTOR SET 6.2mm / 2 x 2 POLES

The minimum purchase order quantity for the product is 5.


Specification(s):
  • for cables of 0.5 to 2.1 mm² / 14 to 20 AWG
  • ratings: 50 V / 10 A
  • can be crimped with: [product name=VTNCT]VTNCT[/product]
Feature(s):
  • number of contacts: 2 x 2 poles
  • contact resistance: 10 mohm max.
  • insulator resistance: 1000 Mohm min.
  • dielectric strength: 1500 VAC for 1 minute
  • current rating: 8-13 A
  • voltage rating: 300 VAC
  • pitch: 6.2 mm / 0.24"
  • material:
  • housing: nylon UL 94V-0
  • contact: phosphor bronze (tin-plated)


  • EAN: 5410329241452
