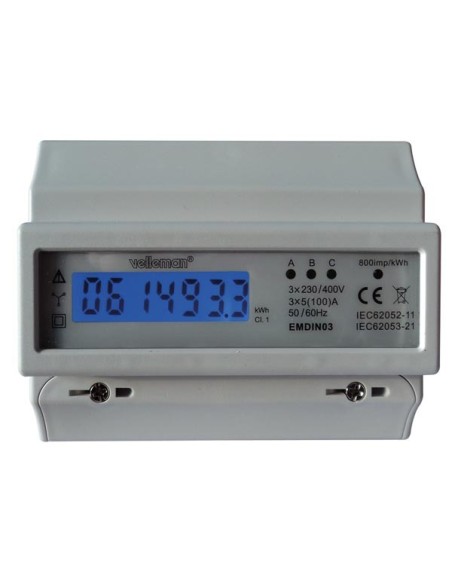

3 PHASE - 7 MODULE DIN RAIL MOUNT kWh METER - FOR PROFESSIONAL USE
3 PHASE - 7 MODULE DIN RAIL MOUNT kWh METER -...

3 PHASE - 7 MODULE DIN RAIL MOUNT kWh METER - FOR PROFESSIONAL USE

EMDIN03
Available
€117.90
Tax included
3 PHASE - 7 MODULE DIN RAIL MOUNT kWh METER - FOR PROFESSIONAL USE


Three-phase four-wire electronic DIN rail kWh meter with pulse counting output. Very accurate, reliable, light, and compact device. The current specification is an important parameter for energy meters as it signifies a meter's ability to accurately measure the power consumed by a user's electrical load. There are generally two parts to this specification: the basic current (Ib) for direct-connected meters and the maximum current I max. Of these current ratings, you will typically see the current specification defined in terms of Ib with the I max value shown in parentheses. For example, some common values for the energy meter current specification include 5 (40) A, 5 (80) A or 10 (100) A. ABC indication lights up when the 3 phase is working which means when the phase (L1 A/ L2 B/ L3 C) is actively connected.

Specification(s):
  • LCD display (with blue backlight)
  • pulsed output
  • LED indicator
  • Very accurate, reliable, light, and compact device.
Feature(s):
  • Physical properties
  • Width DIN modules: 7
  • Number of phases: 3
  • Display type: LCD
  • Electrical data
  • Pulse output current: 27 mA
  • Maximum current rating: 100 A
  • Accuracy class: 1
  • DIN rail energy meters minimum accuracy current: 15 A
  • LED indicator blinks per pulse: 1
  • Maximum indication: 999999.99
  • Maximum torque rating: 140 N·m
  • Pulse width: 90 ms
  • Pulse output voltage: 12-27 V
  • Pulse per kilowatt-hour: 800
  • General data
  • Number of DIN modules: 1
  • Technical data
  • DIN rail: Yes
  • PNP transistor: Yes
  • DIN rail energy meters nominal voltage - 3P: 3 x 230 V / 400 V
  • Environmental data
  • Operating temperature: -20-65 °C
  • Connections
  • Wire size mm²: 7-50 mm²
  • Power supply
  • Input frequency rating: 50/60 Hz
  • Power consumption: 2 W
  • Included
  • LED indicator: Yes
  • Reset function: No
  • Product basic info
  • Colour: Grey
  • Depth: 122 mm
  • Height: 65 mm
  • Weight: 415 g
  • Width: 115 cm


  • EAN: 5410329480288
