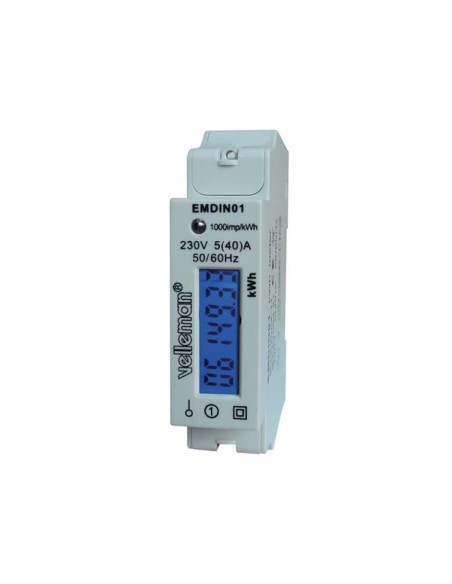

SINGLE PHASE - SINGLE MODULE DIN RAIL MOUNT kWh METER - FOR PROFESSIONAL USE

This single-phase DIN rail kWh meter is a new generation of single-phase electronic watt-hour meters, adopting micro-electronic techniques, LSI circuits and advanced digital and SMT techniques. The meter is in conformity with the relevant technical requirements of Class 1, Class 2 and IEC62052-11, IEC62053-21. It accurately and directly measures 50/60 Hz active energy consumption from single-phase AC electricity grids. The current specification is an important parameter for energy meters as it signifies a meter's ability to accurately measure the power consumed by a user's electrical load. There are generally two parts to this specification: the basic current (Ib) for direct-connected meters and the maximum current I max. Of these current ratings, you will typically see the current specification defined in terms of Ib with the I max value shown in parentheses. For example, some common values for the energy meter current specification include 5 (40) A, 5 (80) A or 10 (100) A.

Specification(s):

• Very accurate, reliable, light, and compact device
• LCD display (with blue backlight)
• pulsed output
• LED indicator

Feature(s):

• Physical properties
• Width DIN modules: 1
• Number of phases: 1
• Display type: LCD
• Electrical data
• Pulse output current: 27 mA
• Maximum current rating: 40 A
• Accuracy class: 1
• DIN rail energy meters minimum accuracy current: 5 A
• DIN rail energy meters nominal voltage: 230 V
• LED indicator blinks per pulse: 1
• Maximum indication: 999999.99
• Maximum torque rating: 110 N·m
• Pulse width: 90 ms
• Pulse output voltage: 12-27 V
• Pulse per kilowatt-hour: 1000
• General data
• Number of DIN modules: 1
• Technical data
• DIN rail: Yes
• PNP transistor: Yes
• Environmental data
• Operating temperature: -20-65 °C
• Connections
• Wire size mm²: 2-16 mm²
• Power supply
• Input frequency rating: 50/60 Hz
• Power consumption: 0.4 W
• Included
• LED indicator: Yes
• Reset function: No
• Product basic info
• Colour: Grey
• Depth: 80 cm
• Height: 60 mm
• Weight: 67 g
• Width: 18 mm

• EAN: 5410329481063
