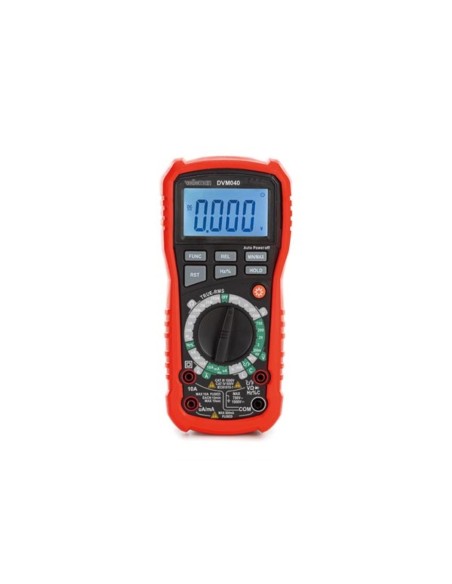

Industrial rugged true RMS digital multimeter - CAT III - 1000 V / CAT IV - 600V - 11 functions
DVM040
The DVM040 is the ultimate industrial tool for professional electricians and installers. This rugged manual range digital multimeter is designed to meet the needs of professionals in the field, with a wide range of features that make it the choice of choice for all your measurement needs.
With true RMS technology, this multimeter can accurately measure voltage and current, making it an indispensable tool for any electrical job. And with the ability to measure frequency and capacitance as well, you have all the information you need to get your job done quickly and efficiently.

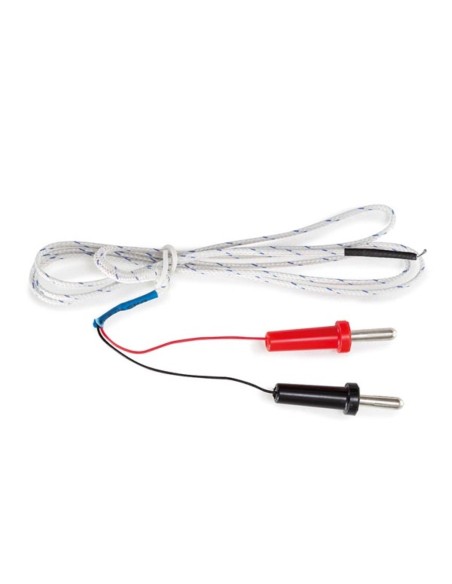

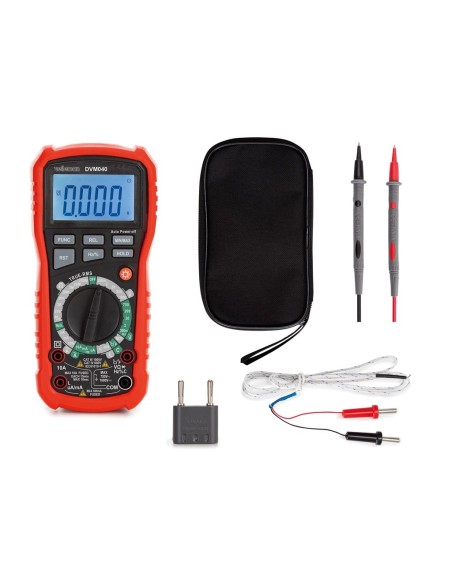

One of the notable features of this digital multimeter is the NCV (non-contact voltage detection), which allows you to easily and safely detect the presence of voltage without making direct contact with the electrical source. With the included temperature probes, you can easily perform accurate temperature tests.
The high quality 100 cm long test leads are practical for all your testing needs. The backlit LCD display makes it easy to read your measurements. And with a safety rating of CAT III - 1000 V / CAT IV - 600 V and a fused current measurement of 500mA and 10A at 1000 V, you can safely use this multimeter in fuse boxes, lighting circuits but also in primary power supply circuits, where safety is paramount.
Specification(s):
Specification(s):
- Inbuilt Non-contact voltage detection and live wire detection
- Temperature, frequency, capacitance and inductance measurement
- Back light LCD display
- Low battery indication
- Full range overload protection
- [link url=http://www.velleman.eu/downloads/1/multimeter_overvoltage_installation_categories.pdf]Important safety information[/link]
- Rugged design
- fused current measurement of 500mA and 10A at 1000 V

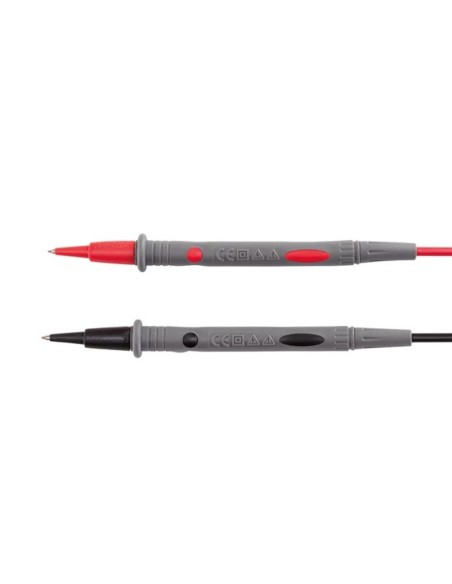

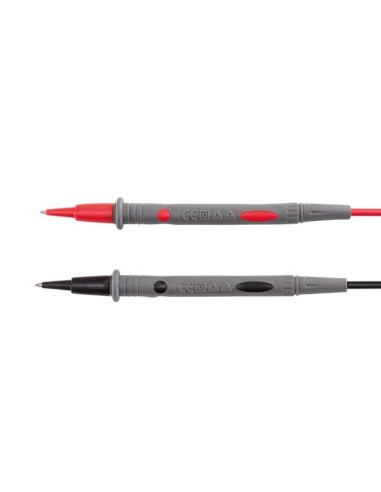

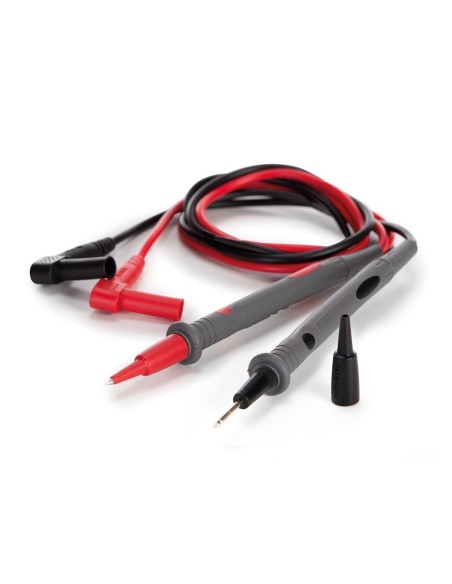

- high-quality measuring leads with a length of 100 cm
- Physical properties
- Cable length: 1 m
- Display height: 32 mm
- Display width: 56 mm
- Display type: LCD
- Backlight: Yes
- Maximum digits display: 2000
- Electrical data
- AC current:
basic accuracy: ±(1.5%+5)
- AC voltage:
basic accuracy: ±(1.0%+5)
- Audible continuity measurement: Yes
- Automatic polarity indication: Yes
- Capacity specifications:
basic accuracy: ±(4.0%+15)
- DC current:
basic accuracy: ±(1.0%+5)
- DC voltage:
basic accuracy: ±(0.5%+3)
- Diode test: Yes
- Frequency: basic accuracy: ±(0.1%+2)
- Fuse type multimeters: F 0.50 A / 1000 V, 6,35 x 32 mm, F 10 A / 1000 V, 6.35 x 32 mm
- Out of range indication: Yes
- Transistor test: No
- True rms: Yes
- AC current measurements: 0.1 µA - 10 A
- AC voltage measurements: 0.1 mV-750 V
- Capacity measurements: 10 pF - 100 mF
- DC current measurements: 0.1 µA - 10 A
- DC voltage measurements: 0.1 mV-1000 V
- Frequency measurements: 10 Hz - 10 MHz
- Resistance measurements: 0.1 ohm - 200 megohm
- Resistance specifications:
basic accuracy: ±(0.8%+5)
- Continuity test: Yes
- Technical data
- Safety rating: Cat III / 1000 V, Cat IV / 600 V
- Automatic power-off function: Yes
- Data-hold function: Yes
- Relative value measurement: Yes
- Remote voltage test (NCV): Yes
- Environmental data
- Usage location: Indoor only
- IP rating: IPx0
- Operational properties
- Measuring temperature range °C: -20-1000 °C
- Measuring temperature range °F: -4-1832 °F
- Range setting: Manual
- Power supply
- Batteries included: Yes
- Number of batteries: 1
- Low battery indicator: Yes
- Battery IEC size: 9 V
- Included
- with LED light: No
- Set contents:
- Product basic info
- Colour unit: Red
- Depth unit: 60 mm
- Height unit: 200 mm
- Width unit: 92 mm
- Weight Unit: 230 g
- Material: ABS
- EAN: 5410329757342
