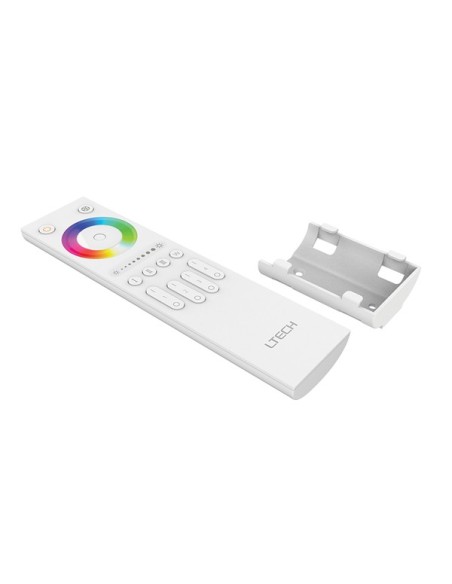

MULTI-ZONE SYSTEM - RGBW RF LED REMOTE CONTROLLER - 4 ZONES

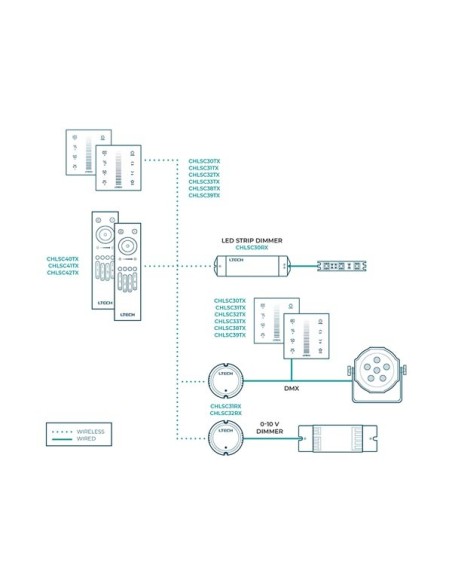

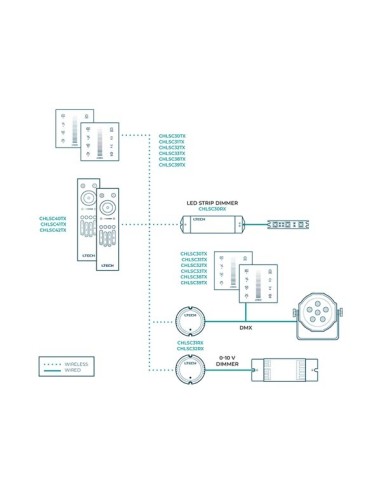

This multi-zone system allows to control devices both wirelessly and via the DMX protocol. You can create up to 4 areas that can be controlled separately. Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM). You can control the system using the RF design remote control. Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels. With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.

Specification(s):

• wireless RF remote control for multi-zone system (compatible controllers are listed as options below)
• can control 4 zones in the wireless multi-zone setup
• key functions:
• ON/OFF
• mode selection
• touch color circle
• brightness slider
• scene selection
• white light key
• zone selection

Feature(s):

• Physical properties
• Number of channels: 4
• Technical data
• Radio frequency: 2.4 GHz
• LED strip colour type: RGBW
• Maximum remote control distance: 20 m
• Set-up options
• Adjustable brightness: Yes
• Operation mode: DMX, RF, Wireless
• Adjustable colours: Yes
• Adjustable modes: No
• Adjustable scenes: Yes
• Adjustable zones: Yes
• Number of zones: 4
• Environmental data
• IP rating: IP20
• Usage location: Indoor only
• Operating temperature: -20-55 °C
• Operational properties
• Instruction manual languages: English
• Power supply
• Battery required: Yes
• Number of batteries: 2
• Batteries: No
• Battery IEC size: AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400)
• Battery composition: Alkaline
• Battery voltage rating: 3 V
• Input voltage rating VDC: 3 V
• Rechargeable: No
• Included
• LED indicator: Yes
• On/off switch: Yes
• Product basic info
• Colour: White
• Depth: 22 mm
• Height: 166 mm
• Weight: 90 g
• Width: 47 mm
• Material: ABS

• EAN: 5410329719791
