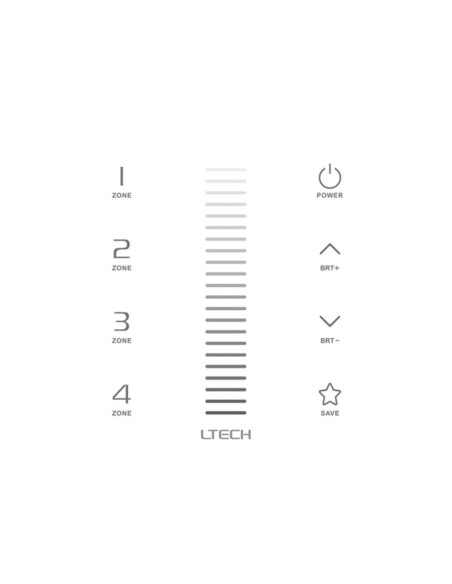

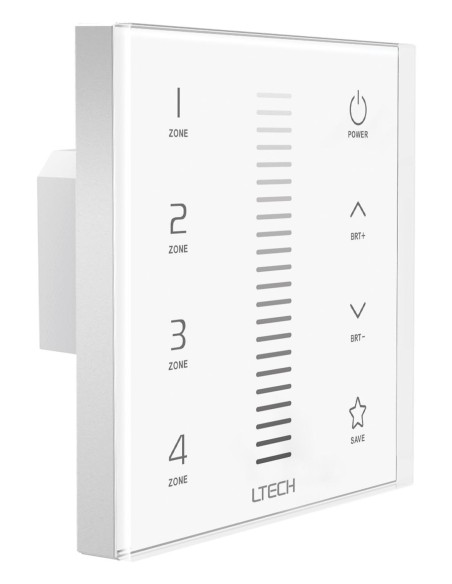

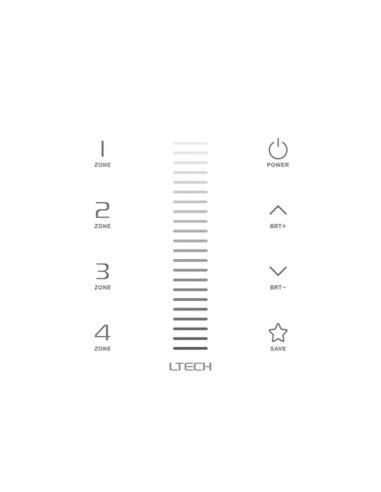

MULTI-ZONE SYSTEM - SINGLE CHANNEL LED TOUCH PANEL DIMMER - DMX / RF - 4 ZONES

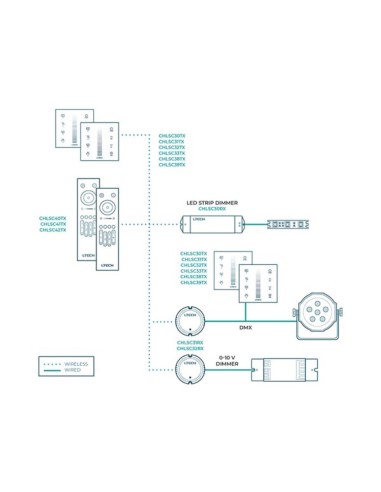

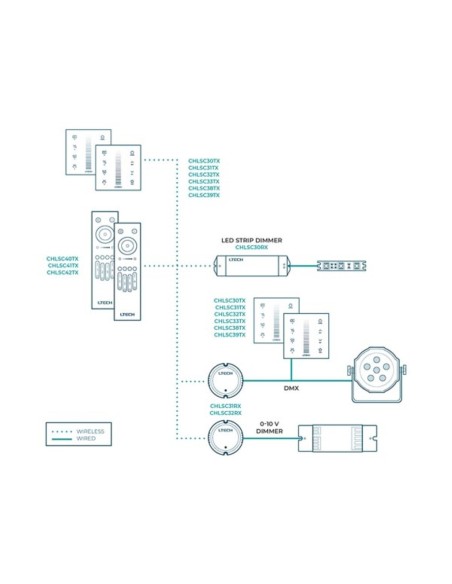

This multi-zone system allows to control devices both wirelessly and via the DMX protocol. You can create up to 4 areas that can be controlled separately. Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM). You can control the system using the RF design remote control. Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels. With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.

Specification(s):

• 2 operation modes:
• DMX controller
• wireless transmitter for multi-zone system (compatible controllers are listed as options below)
• wireless setup:
• can control 4 zones in the wireless multi-zone setup
• you can connect an unlimited number of receivers to a single touch panel
• key functions:
• ON/OFF
• brightness touch slider
• brightness +/-
• zone selection

Feature(s):

• Physical properties
• Light colour range LED: Single colour
• Technical data
• Mounting type: Built-in
• Number of wireless setup zones: 4
• Set-up options
• Adjustable brightness: Yes
• Output protocols type: Manual control
• Operation mode: DMX, RF, Wireless
• Output zones type: Multi-zone
• Environmental data
• IP rating: IP20
• Usage location: Indoor only
• Operating temperature: -20-55 °C
• Operational properties
• Instruction manual languages: English
• Power supply
• Input voltage rating VAC: 100-240 V
• Included
• On/off switch: Yes
• Brightness touch slider: Yes
• Zone selection: Yes
• Product basic info
• Colour: White
• Depth: 37 mm
• Height: 86 mm
• Weight: 240 g
• Width: 86 mm
• Material: Glass
• Additional material: PC (polycarbonate)

• EAN: 5410329719760
