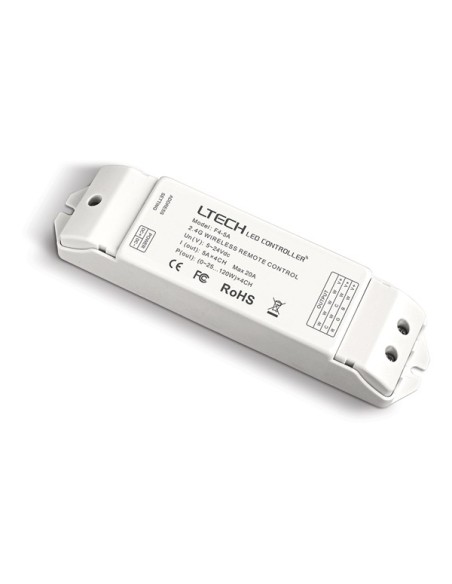

MULTI-ZONE SYSTEM - RECEIVER 4 CHANNEL LED CONTROLLER

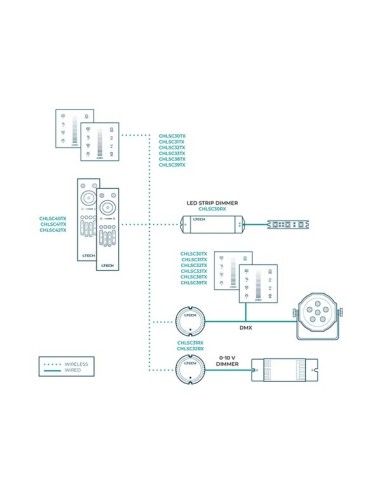

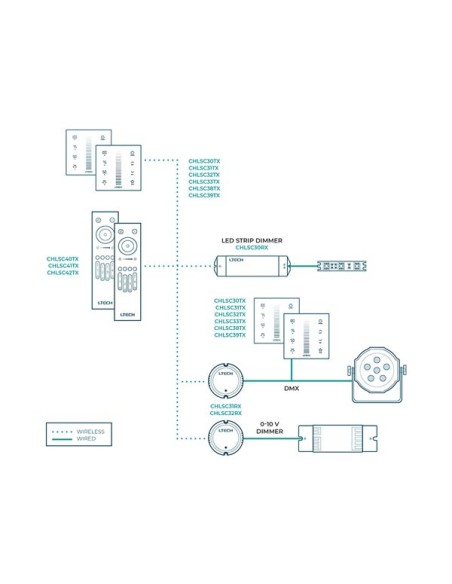

This multi-zone system allows to control devices both wirelessly and via the DMX protocol. You can create up to 4 areas that can be controlled separately. Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM). You can control the system using the RF design remote control. Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels. With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.

Specification(s):

• compatible with up to 10 touch glass panel controllers or handheld RF remotes
• controller can be used for different applications:
• 1 channel dimming
• 2 channel color temperature (CCT) dimming
• 3 channel RGB controller and dimming
• 4 channel RGBW controller and dimming

Feature(s):

• electronics:
• LED output current (max per output): 5 A
• current max.: 20 A
• power supply: not applicable
• LED outputs: 4
• output power: 100 W @ 5V, 240 W @ 12 V, 480 W @ 24 V
• lighting:
• colour range: white, warm white, tunable white, RGB, RGBW, single colour
• control:
• output: constant voltage
• protocol: RF
• environmental:
• operating temperature: -30-55 °C
• approvals:
• CE: yes
• ingress protection: IP44
• output:
• output voltage: 5V, 12 V, 24 V
• warranty:
• warranty: 5 year
• weight & dimensions:
• width x height x depth: 0.17 x 0.03 x 0.04 cm
• weight: 0.17 kg

• EAN: 5410329691400
