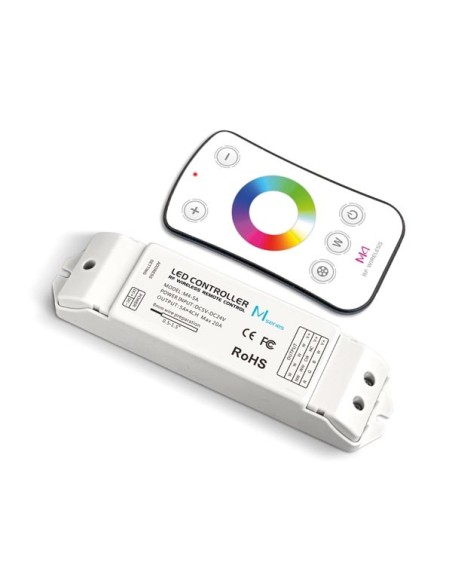

RGBW LED CONTROLLER - WITH RF REMOTE CONTROLLER
CHLSC16
Available
€79.96
Tax included
RGBW LED CONTROLLER - WITH RF REMOTE CONTROLLER
Specification(s):
- ideal for use with RGBW LED strips. See our [link url=https://www.velleman.eu/products/list/?id=456520]website[/link].
- controlled through radio frequency (RF) remote (incl.)
- RF remote control:
- 2 buttons for speed and brightness selection
- ON and OFF button
- mode selection button
- white button
- touch RGB circle
- use only with a power supply of max. 240 W / 12 V or 480 W / 24 V
- Physical properties
- Light colour range LED: RGBW
- RF remote height: 9 mm
- Depth RF remote: 104 mm
- RF remote width: 60 mm
- LED dimmer height: 30 mm
- LED dimmer depth: 175 mm
- LED dimmer width: 30 mm
- RF remote weight: 42 g
- Number of LED outputs: 4
- Weight LED dimmer: 125 g
- Electrical data
- Maximum LED output current per output: 5 A
- Maximum LED output current rating: 20 A
- Protection: Overload, Short-circuit
- Output power rating 12 V: 144 W
- Output power rating 24 V: 288 W
- LED dimmer output type: RF, PWM-CV
- Reverse polarity: Yes
- Technical data
- Protocol: Manual
- Dimmable: No
- Radio frequency: 433.92 MHz
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Operating temperature: -30-55 °C
- Operational properties
- Instruction manual languages: English
- Remote distance: 40 m
- Restart after protection: No
- Connections
- Wire size: 2.5 mm²
- Power supply
- Input voltage rating VDC: 12-24 V
- Included
- On/off switch: Yes
- Product basic info
- Colour: White
- Material: PVC (polyvinyl chloride)
- EAN: 5410329605360
