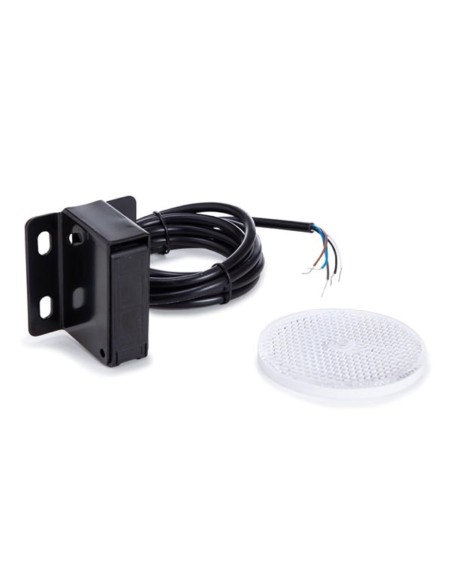

PHOTOELECTRIC BEAM SENSOR, RETRO REFLECTION, 10 m
PEM10D
Available
€95.95
Tax included
PHOTOELECTRIC BEAM SENSOR, RETRO REFLECTION, 10 m
Specification(s):
- universal AC/DC input voltage
- N.O. output
- ± 1.8 m of cable
- mounting bracket/screws included
- detection method: retro-reflection
- sensing range: 10 m
- input voltage: AC/DC 12-250 V ± 10%
- response time: 5 - 100 ms
- emitting element: IR LED
- operation indicator: yellow LED (turn on when beam is broken)
- dimensions: 20 x 39 x 63 mm
- current consumption: ± <10 mA
- output method: relay output
- contact current: 1 A/250 VAC
- illumination:
- lamplight: < 10000 lux
- sunlight: < 30000 lux
- connection method: multicore cable (brown/blue/white/black/grey)
- noise resistance: 1500 Vpp/1µs
- housing material:
- case: PC
- lens: PC
- operating temperature: -10° to +55°C
- IP rating: IP44
- EAN: 5410329377427
