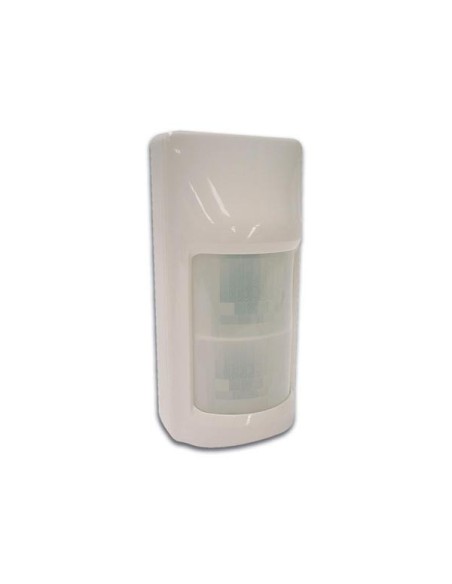

PIR SENSOR WITH DOUBLE TWIN OPTICS
HAA54
Available
€66.96
Tax included
PIR SENSOR WITH DOUBLE TWIN OPTICS
Specification(s):
- double-twin-optics detection technology
- SMD-technology for greater EMI and RFI immunity
- detects the real intruders and ignores pets and rodents
- automatic temperature compensation
- fast or pulse-count response for difficult environments
- with tamper switch
- Electrical data
- Current consumption: 15 mA
- Technical data
- Mounting type: Surface mount
- PIR sensor settings: Automatic temperature compensation, Double-twin-optics detection technology
- Tamper switch: NC contact with 10 Ohm in-line resistor
- Set-up options

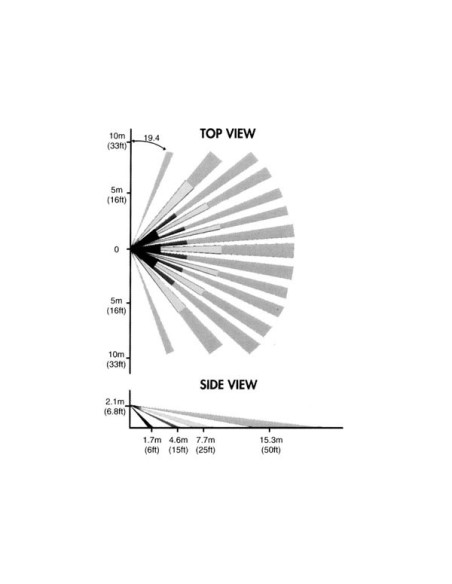

- Detection angle: 160 °
- Detection range: 1.7-15.3 m
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Maximum operating humidity: 95 %
- Operating temperature: -10-55 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Spanish
- Switch type: Tamper
- Alarm output: NC relay 28 VDC 0.1 A
- Alarm output: Yes
- Automatic day/night detection: No
- Detection method: Alternating polarity, 2 pyro-optic elements, passive infrared
- Alarm activation delay: 2-3 s
- Pulse counting: Instant response or 2 pulses within 12 seconds
- Pulse counting: Yes
- Walk test LED: Yes
- Power supply
- Input voltage rating VDC: 9-16 V
- Included
- LED indicator: Yes
- Product basic info
- Colour: White
- Depth: 45 mm
- Height: 127 mm
- Weight: 85 g
- Width: 64 mm
- Material: ABS
- EAN: 5410329212308
