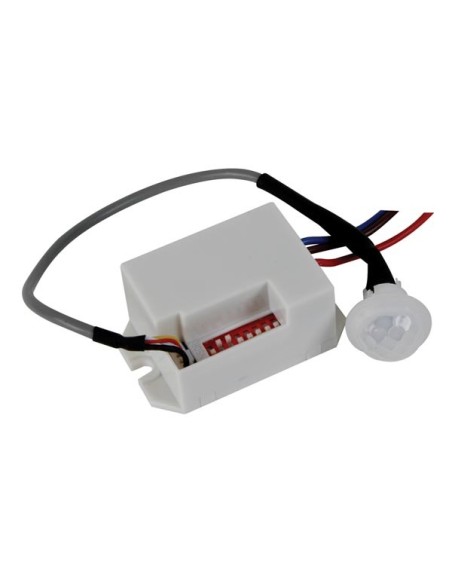

MINI PIR MOTION DETECTOR - FLUSH MOUNT - 12 VDC
EMS114
Out-of-Stock
€12.96
Tax included
MINI PIR MOTION DETECTOR - FLUSH MOUNT - 12 VDC
Specification(s):
- with automatic day/night detection
- adjustable: activation period, light sensitivity (TIME - LUX)
- flush mount
- Physical properties
- Wire length: ± 18 cm
- Height PIR sensor: 10 mm
- Technical data
- Diameter PIR sensor: 22 mm
- Mounting type: Flush mounting
- PIR sensor settings: Adjustable light sensitivity (LUX), Adjustable time delay (TIME)
- Set-up options
- Detection angle: 100 °
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Light sensitivity: 3-2000 lx
- Maximum operating humidity: 93 %
- Operating temperature: -10-40 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Switch type: Relay
- Automatic day/night detection: Yes
- Detection range: 8 m
- Time delay switch: 1 min, 30 s, 3 min, 5 min, 5 s, 8 min
- Mounting hole diameter: ± 12 mm
- Power supply
- Input current rating: 2.6 A
- Input voltage rating VDC: 11-13 V
- Included
- LED indicator: No
- Product basic info
- Colour: White
- Depth: 10 mm
- Height: 40 mm
- Weight: 41 g
- Width: 22 mm
- Material: ABS
- EAN: 5410329709495
