EMS105
Available
€19.95
Tax included

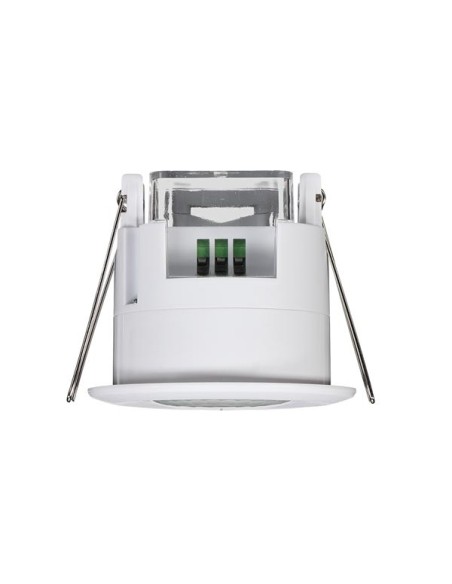

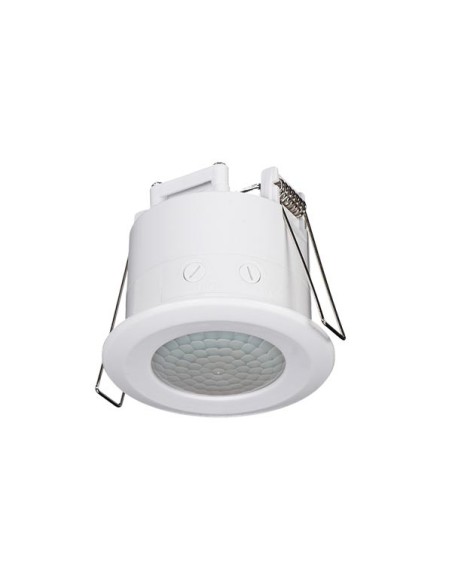

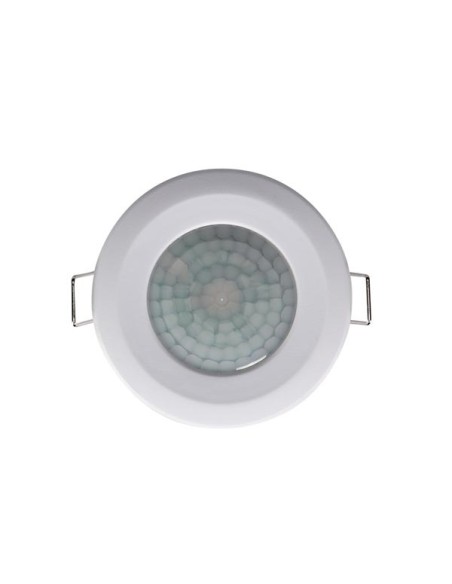

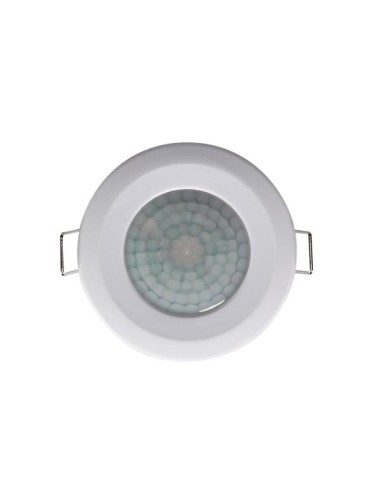

PIR MOTION DETECTOR - FLUSH MOUNT


Specification(s):
  • with automatic day/night detection
  • adjustable: activation period, light sensitivity (TIME - LUX)
  • flush mount
Feature(s):
  • Physical properties
  • Diameter lens: 45 mm
  • Electrical data
  • Maximum rated current fluorescent: 1.5 A
  • Maximum rated current tungsten: 5.5 A
  • Maximum rated current LED: 4.5 A
  • Maximum rated load fluorescent: 300 W
  • Maximum rated load LED: 1000 W
  • Maximum rated load tungsten: 1200 W
  • Technical data
  • Mounting type: Built-in
  • PIR sensor settings: Adjustable light sensitivity (LUX), Adjustable time delay (TIME)
  • Set-up options
  • Detection angle: 360 °
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Light sensitivity: 10-2000 lx
  • Maximum operating humidity: 93 %
  • Operating temperature: -10-40 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Switch type: Relay
  • Automatic day/night detection: Yes
  • Detection range: 6 m
  • Time delay switch: 10 s ± 3 s to 7 min ± 2 min
  • Mounting hole diameter: 61.5 mm
  • Power supply
  • Input frequency rating: 50/60 Hz
  • Input voltage rating VAC: 220-240 V
  • Included
  • LED indicator: No
  • Product basic info
  • Colour: White
  • Depth: 76 mm
  • Height: 76 mm
  • Weight: 81 g
  • Width: 76 mm
  • Material: ABS


  • EAN: 5410329709396
