Specification(s):
- with automatic day/night detection
- adjustable: activation period, light sensitivity (TIME - LUX)
- Electrical data
- Maximum rated current fluorescent: 1.5 A
- Maximum rated current tungsten: 5.5 A
- Maximum rated current LED: 4.5 A
- Maximum rated load fluorescent: 300 W
- Maximum rated load LED: 1000 W
- Maximum rated load tungsten: 1200 W
- Technical data
- Mounting type: Surface mount

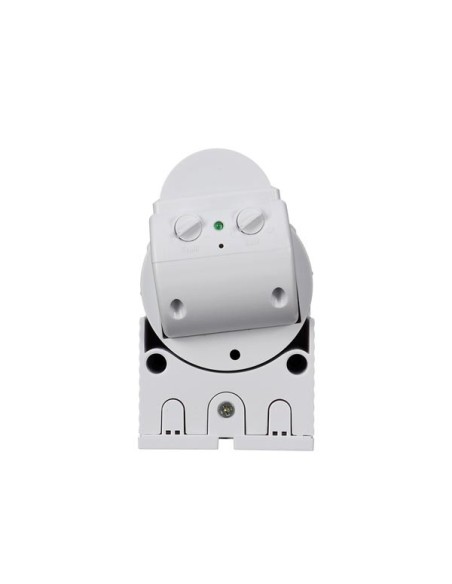

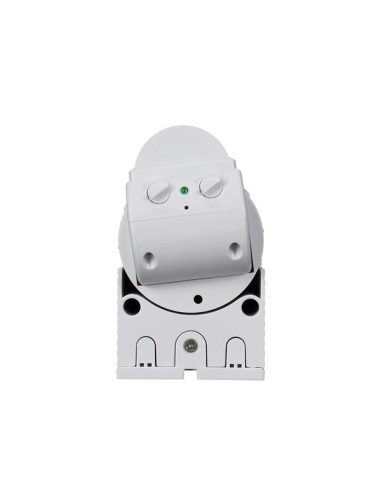

- PIR sensor settings: Adjustable light sensitivity (LUX), Adjustable time delay (TIME)
- Set-up options
- Detection angle: 180 °
- Environmental data
- IP rating: IP44
- Usage location: Indoor & outdoor
- Light sensitivity: 10-2000 lx
- Maximum operating humidity: 93 %
- Operating temperature: -10-40 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Switch type: Relay
- Automatic day/night detection: Yes
- Detection range: 12 m
- Time delay switch: 10 s ± 3 s to 7 min ± 2 min
- Power supply
- Input frequency rating: 50/60 Hz
- Input voltage rating VAC: 220-240 V
- Included
- LED indicator: Yes
- Product basic info
- Colour: White
- Depth: 105 mm
- Height: 83 mm
- Weight: 198 g
- Width: 72.5 mm
- Material: ABS
- EAN: 5410329709365
