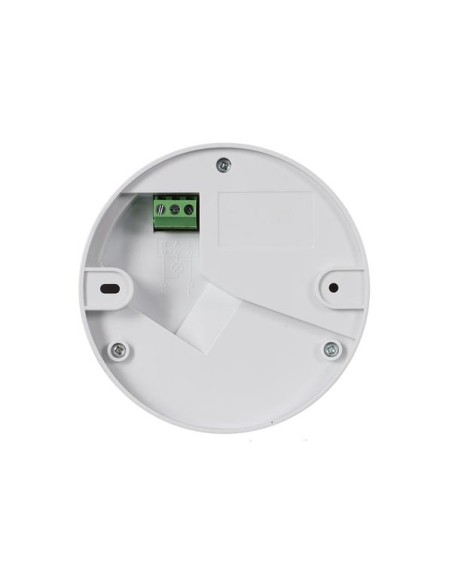

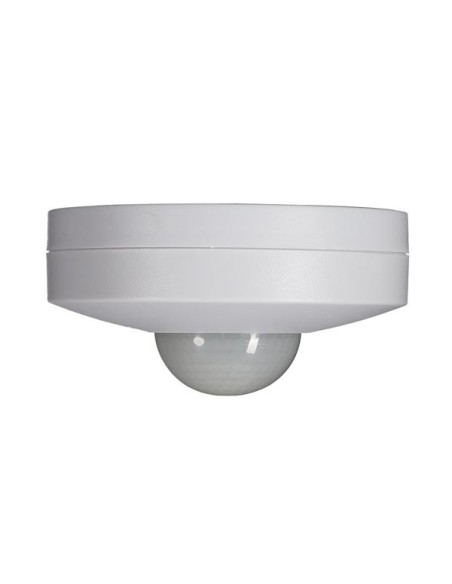

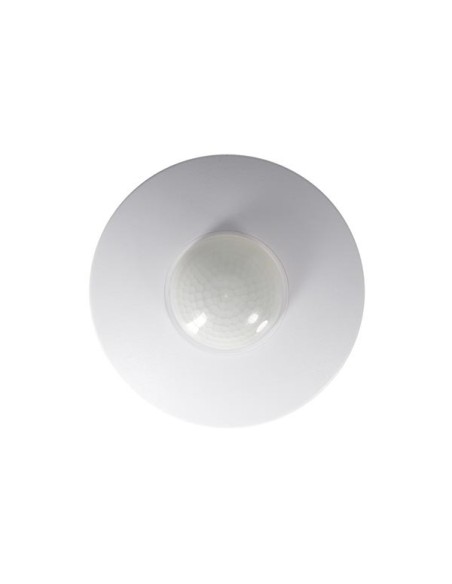

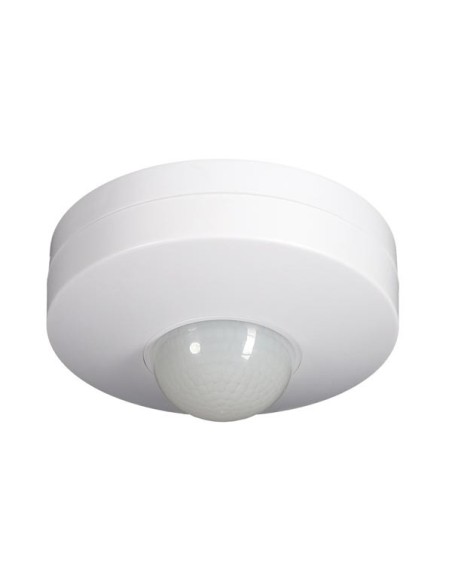

PIR MOTION DETECTOR FOR CEILING MOUNTING - WHITE
EMS101
Available
€14.96
Tax included
PIR MOTION DETECTOR FOR CEILING MOUNTING - WHITE
Specification(s):
- with automatic day/night detection
- adjustable: motion sensitivity, activation period, light sensitivity (SENS - TIME - LUX)
- Electrical data
- Maximum rated current fluorescent: 1.5 A
- Maximum rated current tungsten: 5.5 A
- Maximum rated current LED: 4.5 A
- Maximum rated load fluorescent: 300 W
- Maximum rated load LED: 1000 W
- Maximum rated load tungsten: 1200 W
- Technical data
- Mounting type: Ceiling
- PIR sensor settings: Adjustable light sensitivity (LUX), Adjustable motion sensitivity (SENS), Adjustable time delay (TIME)
- Set-up options
- Detection angle: 360 °
- Detection range: 2-8 m
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Light sensitivity: 10-2000 lx
- Maximum operating humidity: 93 %
- Operating temperature: -10-40 °C
- Operational properties
- Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
- Switch type: Relay
- Automatic day/night detection: Yes
- Time delay switch: 10 s ± 3 s to 7 min ± 2 min
- Power supply
- Input frequency rating: 50/60 Hz
- Input voltage rating VAC: 220-240 V
- Included
- LED indicator: No
- Product basic info
- Colour: White
- Depth: 105 mm
- Height: 53 mm
- Weight: 130 g
- Width: 105 mm
- Material: ABS
- EAN: 5410329706173
