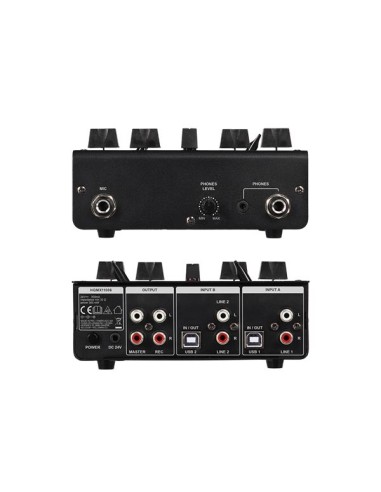

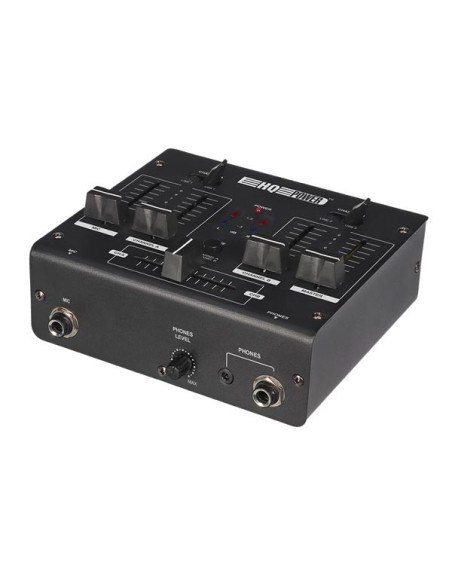

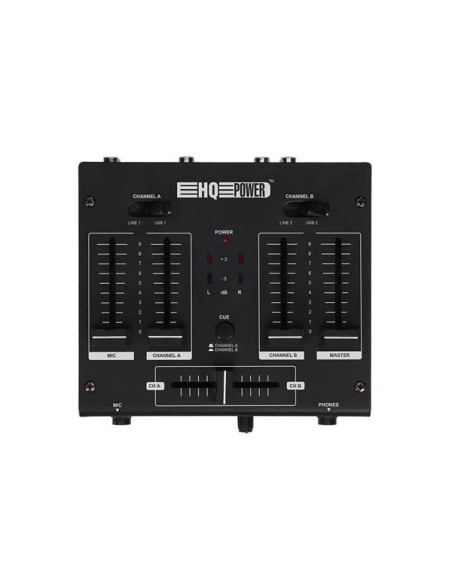

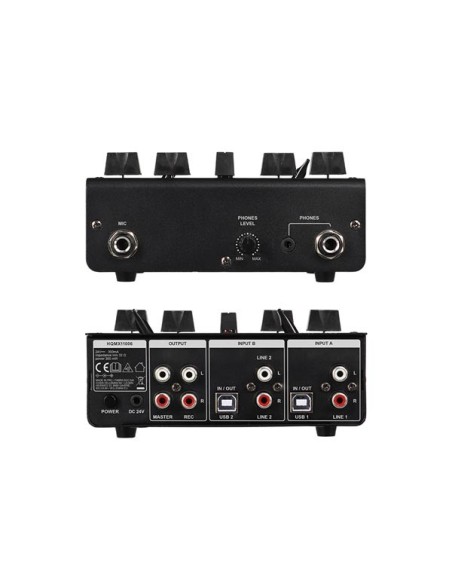

2-CHANNEL MIXER WITH 2 USB INPUTS

a professional 2 channel analogue DJ mixer. With 2 analogue inputs and 2 independent USB interfaces. the headphone output has a low tone control which makes it possible to adjust your sound. you can allso record musical signals from OUTPUT. USB1 from REC OUT , USB2 from MASTER OUT.

Specification(s):

• 2 inputs (lines) and 2 independent USB inputs
• 1 microphone input (jack)
• headphone output (6.3 mm stereo jack)

Feature(s):

• power supply: 24 VDC 300 mA (adaptor incl.)
• 1 kHz sine wave inputs
• microphone: -45 dB / 2 Kohm
• phono: -15 dB / 27 Kohm
• line 1/2: -15 dB / 77 Kohm (max. GAIN)
• 1 kHz sine wave outputs
• master: +0 dB / 600 Ohm
• rec: -5 dB / 600 Ohm
• phones: +5 dB / 300 mW / 32 Ohm
• noise
• master: -82 dB
• line: -78 dB
• mic: -80 dB
• phono: -80 dB
• frequency response: 20 Hz - 20 kHz ± 2dB
• distortion: < 0.02%
• S/N ratio: > 70 dB
• dimensions: 150 x 140 x 80 mm
• weight: 1.2 kg
• headphones power: 300 mW min. 16 Ohm

• EAN: 5410329722562
