DUAL-CHANNEL WIRELESS MICROPHONE SYSTEM
MICW81
Available
€169.91
Tax included

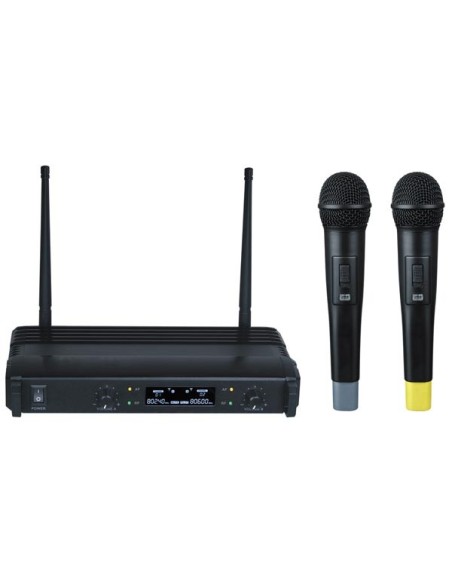

DUAL-CHANNEL WIRELESS MICROPHONE SYSTEM
The MICW81 is a dual UHF system with two handheld microphones for musicians, actors, presenters and moderators. Make yourself heard at meetings, sports events, in hotels and universities
Specification(s):
Specification(s):
- 2-channel receiver (UHF)
- integrated antenna splitter
- removable antennas
- half 19" design, two systems fit in a 19" rack
- system:
- frequency range: UHF 863.500 - 865.000 MHz
- a licence may be required for some frequency bands - please check your local regulations
- modulation mode: FM (PLL)
- nominal / peak deviation: ± 20 kHz
- frequency stability: automatic calibration
- frequency response: 40 Hz-15 kHz ± 3 dB
- S/N ratio at 1mV RF and peak deviation: max. 95 dB
- THD at nominal deviation and 1kHz: < 0.5 %
- temperature range: -10 °C to +55 °C
- receiver:
- sensitivity (peak deviation): 7 dBuV
- AF output voltage at peak deviation and 1kHz AF out:
- balanced: +10 dB (XLR)
- unbalanced: +4 dB (1/4" jack)
- F/N ratio: max. 80 dB
- P/N ratio: max. 80 dB
- transmitter:
- RF output power: 10 mW
- RF squelch: max. 50 dB
- power supply:
- receiver: 12 V 500 mA (adapter incl.)
- transmitter: 2 x 1.5 V AA batteries (incl.)
- dimensions:
- receiver: 270 x 180 x 50 mm
- transmitter: Ø 52.5 x 240 mm
- weight:
- receiver: 770 g
- transmitter: 220 g
- EAN: 5410329631062
