MS3-LPCB
Out-of-Stock
€2.81
Tax included

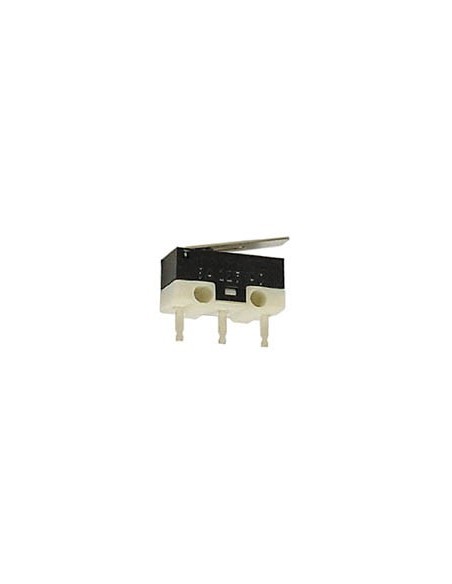

SUPERMINIATURE MICROSWITCH 3A


Specification(s):
  • with lever
Feature(s):
  • contact resistance: initially max. 15mohm
  • insulation resistance: 100Mohm min. (at 500Vdc)
  • dielectric strength: 1000Vac for 1 minute
  • mechanical life: min. 1000000 operations
  • electrical life: min. 100000 operations at full load

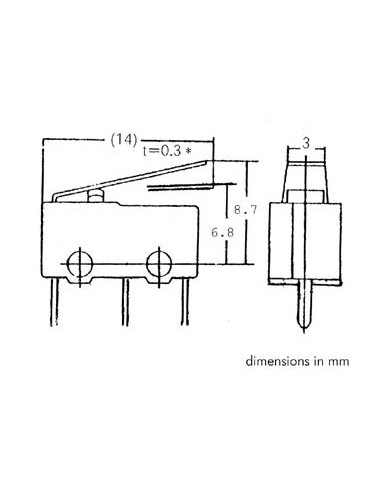

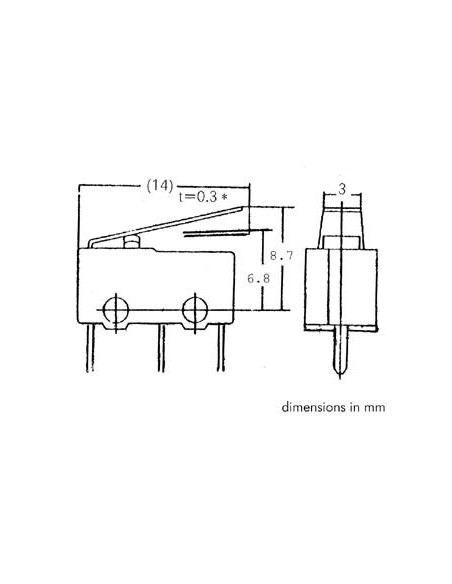

  • dimensions: 6.5 x 12.8 x 5.8mm


  • EAN: 5410329752699
