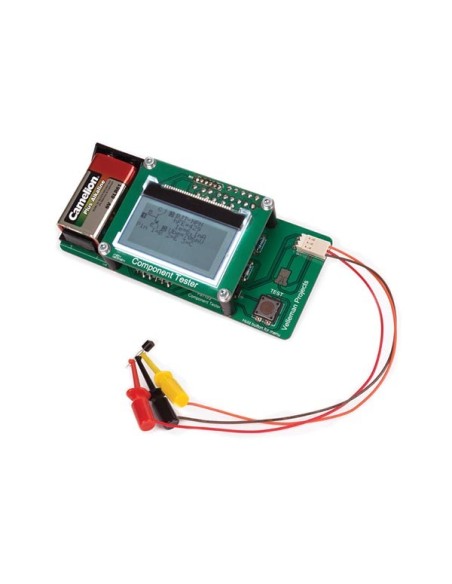

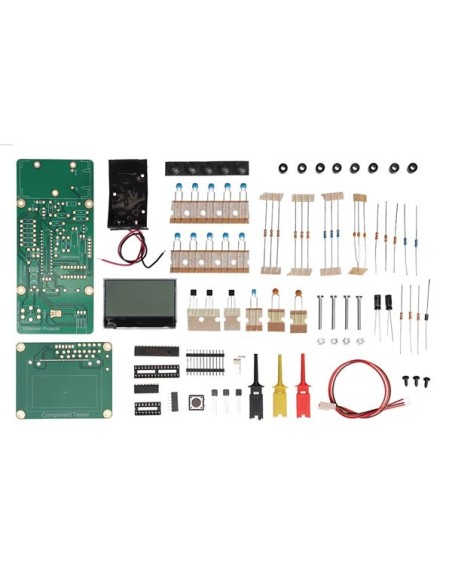

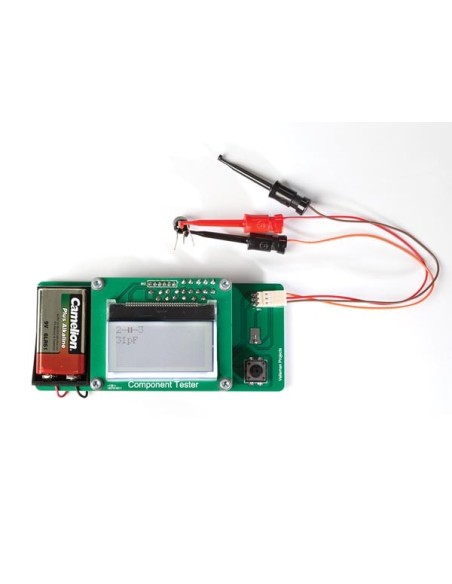

Build your own component tester and receive all useful information about resistors, diodes and many more.
Specification(s):
Specification(s):
- supported components:
- BJT
- JFET
- E-IGBT
- D-IGBT
- E-MOS
- D-MOS
- resistors
- coils
- capacitors
- diodes
- auto shutdown
- shows pin layout
- dimensions: 137 x 60 x 30 (W x L x H)
- resistance resolution: 0.1 Ohm (max. 50 MOhm)
- capacitance range: 28 pF to 100 mF
- inductance range: 0.01 mH to 20 H
- standby current: 20 nA
- power supply: 9 V battery
- test current approx.: 20 mA
- test speed: 2 seconds
- EAN: 5410329730659
