RGB LED CONTROLLER - IR VERSION

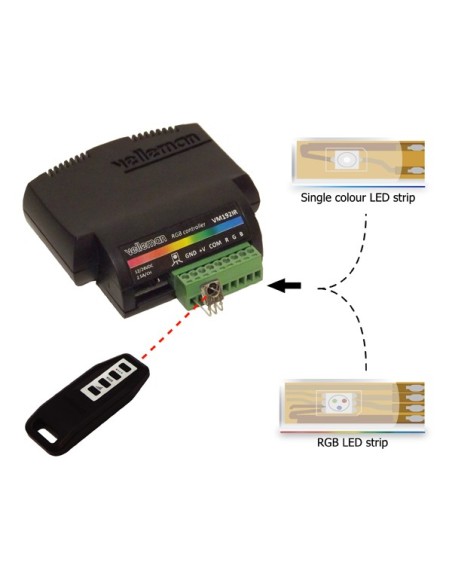

VM192IR is an infrared remote controlled RGB driver for 12 or 24 VDC LED strips. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust the intensity, regardless of the chosen colour or mode.

Specification(s):

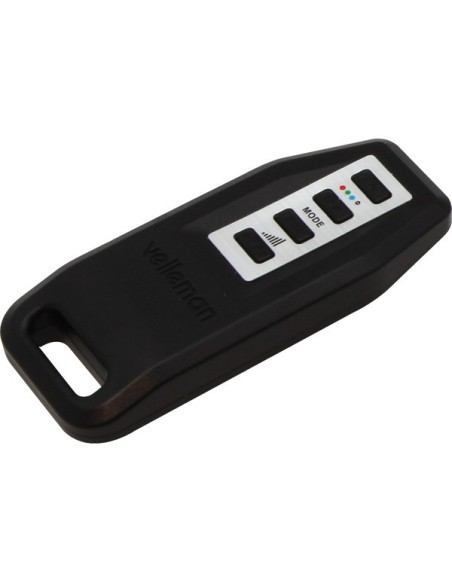

  • includes one 4-channel infrared remote

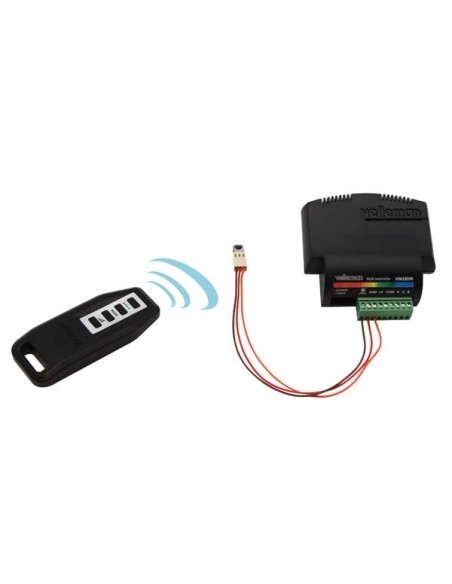

  • IR module can be placed up to 10 m away
  • colour, intensity and mode are retained and will be restored after a power failure
  • speed determined by jumper setting
  • can also be used as a single channel LED dimmer
  • smooth manual scrolling through red-orange-yellow-green-blue-indigo-violet with up/down buttons
  • fix a manually selected colour
Feature(s):
  • power supply: 12..24 VDC
  • current: 2.5 A/channel max. (30 W / 12 V, 60 W / 24 V max.)
  • PWM frequency /resolution: 245 Hz, 10-bit
  • intensity levels: 32
  • colour loop time (R->G->B->R): 50 s, 1 min 40 s, 2 min 30 s, or 3 min 20 s
  • max. ambient temp: 30 °C / 86 °F
  • remote range: up to 10 m (fresh battery, line of sight, no interference)
  • remote power supply: [product name=V23GA]V23GA[/product] or [product name=GP23GAC]GP23GAC[/product] 12 V battery (included)
  • dimensions:

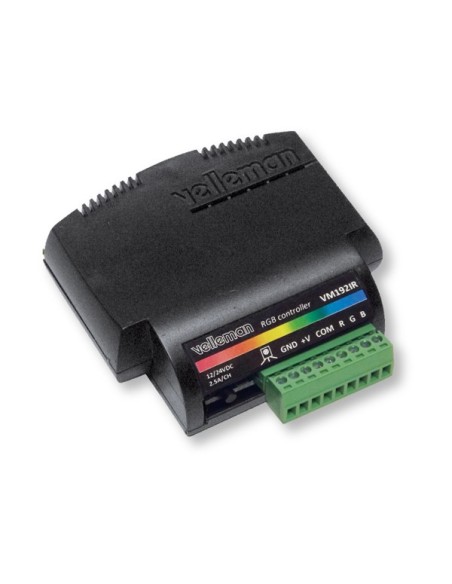

  • controller: 80 x 70 x 23 mm / 3.15 x 2.75 x 0.9"
  • remote: 88 x 37 x 13 mm / 3.46 x 1.45 x 0.5"


  • EAN: 5410329553197
