WML120
Out-of-Stock
€49.96
Tax included

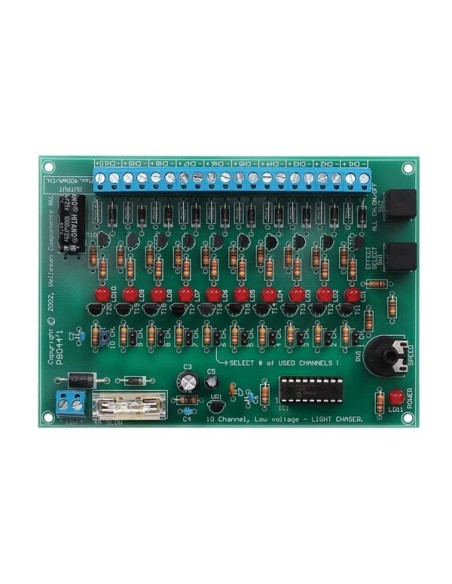

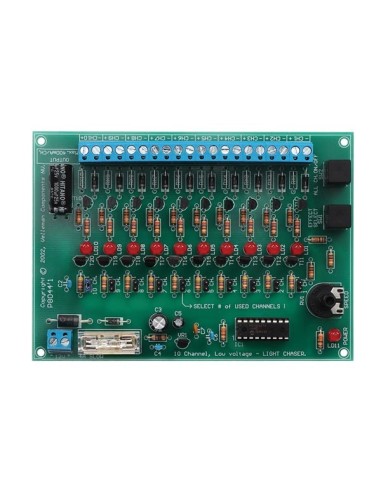

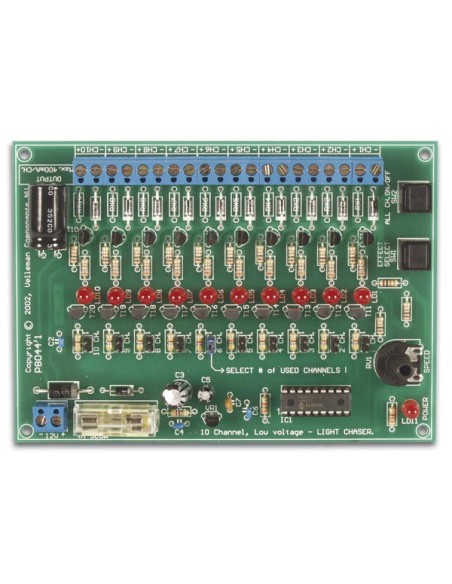

10-CHANNEL 12 VDC LIGHT EFFECT GENERATOR


Specification(s):
  • 10 x 12V/400mA outputs to control cold-cathode fluorescent lamps (using FLPS adapter), light bulbs, LEDs and "solid state" relays, ...
  • for use with advertisement lighting, party lights, eye-catchers, in the disco...
  • ten pre-programmed light patterns selectable with a push button
  • the number of used channels is adjustable
  • the last used lighting effect is saved in non-volatile memory
  • adjustable speed
  • LED indication for every output
  • 12V operation possible for use in cars
  • options:
  • adapter: [product name=PSS1255]PSS1255[/product] (12V output 5.5A)
  • power supply for cold-cathode fluorescent lamps: [product name=FLPS]FLPS[/product] (300mm) or [product name=FLPS1]FLPS1[/product] (100mm)
  • cold-cathode fluorescent lamps: FL(xx) - (100 or 300mm)
  • solid-state relays: [product name=VR25SS1A]VR25SS1A[/product] or [product name=VR3SS1A]VR3SS1A[/product] to drive mains voltage lamps
  • also available in kit version [product name=WSL8044][/product]
Feature(s):
  • power supply: 12V DC
  • outputs: 12V DC / 400mA per channel (total : max 4A)
  • dimensions PCB: 140 x 100 x 27mm (5.5" x 3.9" x 1.1")


  • EAN: 5410329732899
