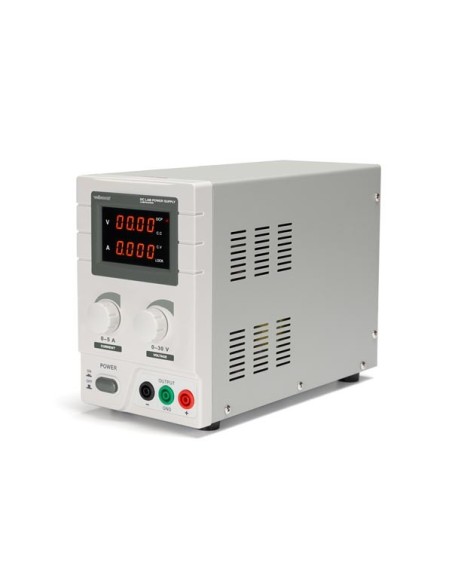

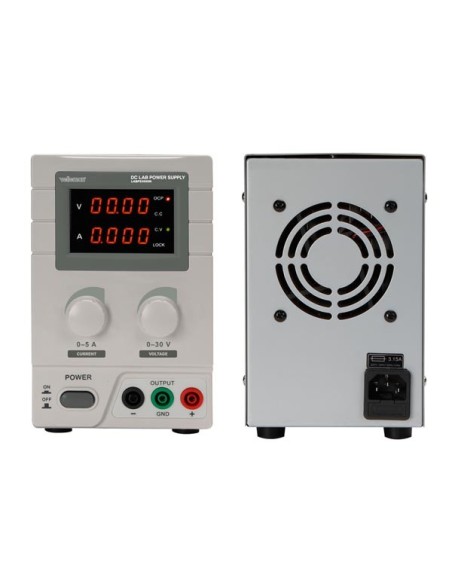

DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH DUAL LED DISPLAY
DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH DUAL LED DISPLAY
DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH...
DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH...

DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH DUAL LED DISPLAY

LABPS3005N
Available
€119.91
Tax included
DC LAB POWER SUPPLY 0-30 VDC / 0-5 A MAX WITH DUAL LED DISPLAY


Specification(s):
  • dual LED display for voltage and current
  • coarse and fine adjustments of voltage and current
  • voltage or current-limiting
  • output connectors: insulated safety terminals
  • low noise temperature controlled fan
  • 4 digit display
  • setting lock function
  • constant voltage / constant current
  • 10 mV / 1 mA setting resolution
  • protection modes:
  • fuse 3.15 A / 250 V
  • over-current protection
  • over-temperature protection (95 °C)
  • fuse-protected
Feature(s):
  • input voltage: 220-240 V~ (± 10 %) 50/60 Hz
  • output:
  • voltage: 0-30 VDC
  • current: 0-5 A
  • power: 150 W max.
  • power factor (cos phi): 0.82
  • ripple voltage: =/< 1.0 mV (rms)
  • ripple current: 3 mA (rms)
  • operating temperature: 0 to +40°C, < 90% relative humidity
  • max. hours continuous at full load: 8 hours
  • dimensions: 117 x 190 x 270 mm
  • weight: 4.8 kg
  • colour: grey


  • EAN: 5410329643027
