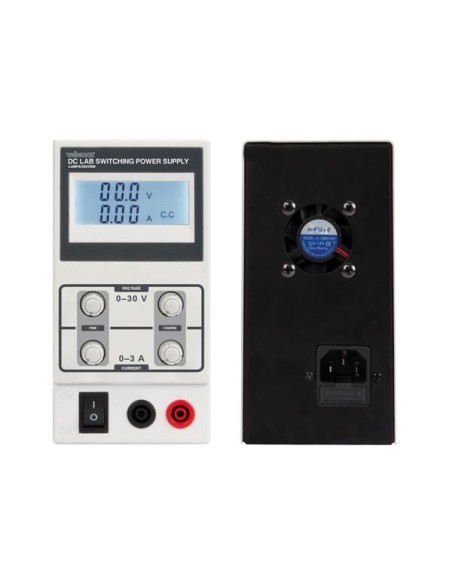

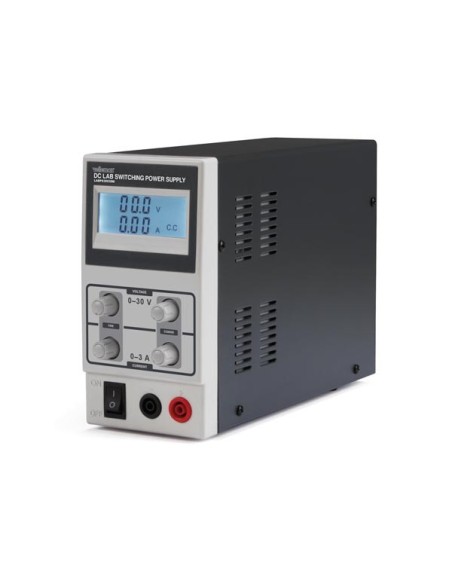

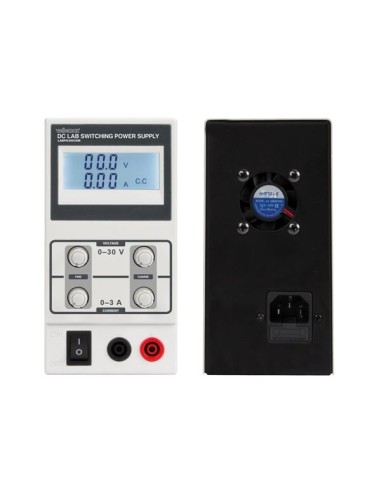

DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-3 MAX WITH LCD DISPLAY
DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-3 MAX WITH LCD DISPLAY
DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC /...
DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC /...

DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-3 MAX WITH LCD DISPLAY

LABPS3003SM
Available
€99.96
Tax included
DC LAB SWITCHING MODE POWER SUPPLY 0-30 VDC / 0-3 MAX WITH LCD DISPLAY


Specification(s):
  • switching mode power supply
  • LCD display for voltage and current
  • protection mode: current-limiting
  • colour: grey - dark grey
  • insulated terminals
  • output connectors: IEC1010
  • fuse-protected
Feature(s):
  • Physical properties
  • Display type: LCD
  • Electrical data
  • Ripple voltage peak to peak: 200 mV
  • Output connector type: IEC 1010
  • Protection: Current limiting
  • Fuse type: T 3.15 A (slow)
  • Power factor: 0.55
  • Output current rating VDC: 0-3 A
  • Technical data
  • Pollution degree: 2
  • Number of current outputs: 1
  • Number of voltage outputs: 1
  • Environmental data
  • Operating temperature: 0-40 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Maximum relative humidity: <  90 %
  • Maximum operating altitude: 2000 m
  • Electrical connections
  • Mains plug type: France/Germany (type E/F)
  • IEC connector: C13 (IEC), C14 (kettle)
  • Power supply
  • Input frequency rating: 50 Hz
  • Power consumption: 126 W
  • Input current rating VAC: 1 A
  • Input voltage rating VAC: 230 V
  • Output voltage rating VDC: 0-30 V
  • Product basic info
  • Colour: Dark grey
  • Additional colour: Grey
  • Depth: 205 mm
  • Height: 160 mm
  • Weight: 1.33 kg
  • Width: 85 mm
  • Material: Steel
  • Additional material: ABS, Aluminium, PP (Polypropylene), PVC (polyvinyl chloride)


  • EAN: 5410329595418
