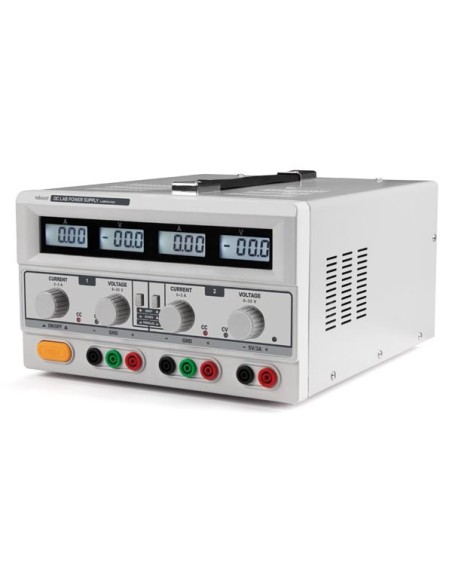

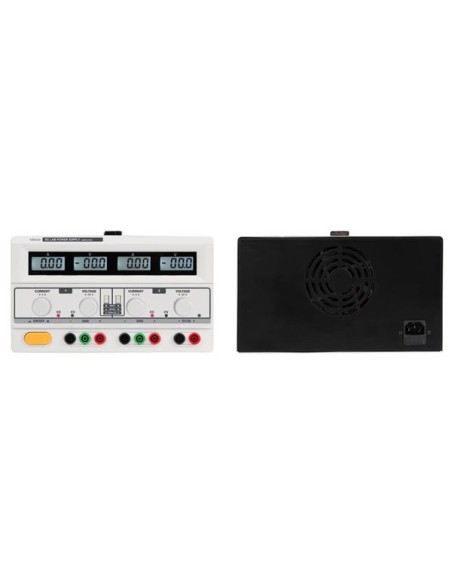

DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A + 5 VDC fixed / 3 A MAX WITH 4 LCD DISPLAYS
DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A + 5 VDC fixed / 3 A MAX WITH 4 LCD DISPLAYS

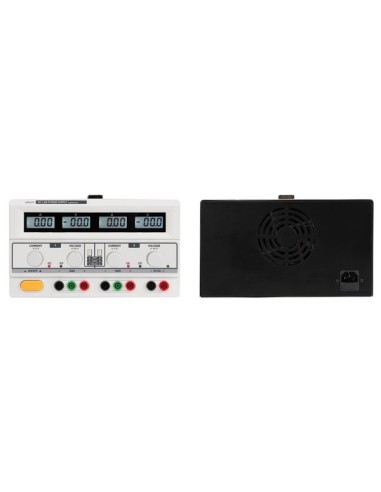

DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A +...
DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A +...

DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A + 5 VDC fixed / 3 A MAX WITH 4 LCD DISPLAYS

LABPS23023
Available
€229.00
Tax included
DUAL DC LAB POWER SUPPLY 2x 0-30 VDC / 0-3 A + 5 VDC fixed / 3 A MAX WITH 4 LCD DISPLAYS


Specification(s):
  • LCD display for voltage and current
  • protection mode: current-limiting
  • colour: white-grey
  • insulated plugs
  • output connectors: IEC1010
  • indoor use only
  • pollution degree II
  • fuse-protected
Feature(s):
  • Physical properties
  • Display type: LCD
  • Electrical data
  • Ripple voltage: <= 1 mV
  • Fixed output current rating: 3 A
  • Output connector type: IEC 1010
  • Fixed output voltage rating VDC: 5 V
  • Output current rating: 0-3 A
  • Protection: Current limiting
  • Fuse type: T 4 A (slow) 250 V
  • Power factor: 0.78
  • Technical data
  • Pollution degree: 2
  • Number of current outputs: 2
  • Number of voltage outputs: 2
  • Environmental data
  • Operating temperature: 5-40 °C
  • Operational properties
  • Instruction manual languages: Dutch, English, French, German, Polish, Portuguese, Spanish
  • Maximum relative humidity: <  90 %
  • Maximum operating altitude: <= 2000 m
  • Electrical connections
  • Mains plug type: France/Germany (type E/F)
  • IEC connector: C13 (IEC), C14 (kettle)
  • Power supply
  • Input frequency rating: 50 Hz
  • Power consumption: 300 W
  • Input current rating VAC: 2 A
  • Input voltage rating VAC: 230 V
  • Output voltage rating VDC: 0-30 V
  • Product basic info
  • Colour: White
  • Additional colour: Grey
  • Depth: 360 mm
  • Height: 165 mm
  • Weight: 7.14 kg
  • Width: 265 mm
  • Material: Steel
  • Additional material: ABS, Aluminium, PP (Polypropylene), PVC (polyvinyl chloride)


  • EAN: 5410329595258
