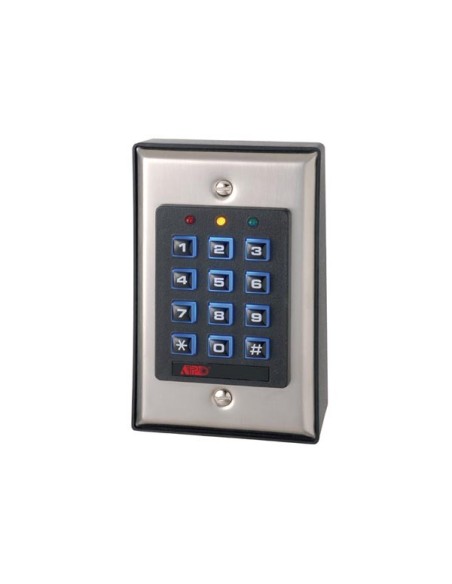

SELF-CONTAINED DIGITAL ACCESS CONTROL KEYPAD WITH BACKLIGHT
SELF-CONTAINED DIGITAL ACCESS CONTROL KEYPAD...

SELF-CONTAINED DIGITAL ACCESS CONTROL KEYPAD WITH BACKLIGHT

HAA85BLN
Available
€66.96
Tax included
SELF-CONTAINED DIGITAL ACCESS CONTROL KEYPAD WITH BACKLIGHT


The HAA85BLN is a self-contained digital access keypad designed for residential and commercial installations. It is mainly for stand alone electric lock and inter-lock systems operating with 12 VDC power supply. It is virtually compatible with any electric locking device. Apart from that it is also a perfect choice for controlling security systems, automatic operators and machinery.

Specification(s):
  • backlit keyboard: dim in stand-by, brightens for 10 seconds at the press of a key
Feature(s):
  • outputs:
  • output 1: solid state relay 3 A / 12 VDC
  • output 2: mechanical relay 1 A / 24 VDC max
  • output 3: NPN open collector 100 mA / 24 VDC
  • 3 LED lamps showing external system status
  • interlock facility
  • output 1 locking control
  • door propped-up warning
  • auto or manual code entry
  • relay activation announcement
  • pacifier tone on/off options
  • key activation output
  • door auto relock
  • alarm output
  • duress output
  • with onboard LED indication for showing keypad operation status
  • operating voltage: 12 VDC
  • duress output: NPN transistor with open collector output, switches to ground (-) when activated, 100mA/25VDC max
  • available codes: user1 & 2, super user, master, duress and accelerated codes
  • code combinations: 111.110.000
  • dimensions: 117 x 72 x 42 mm
  • weight: 180 g
  • user manual: English


  • EAN: 5410329683672
