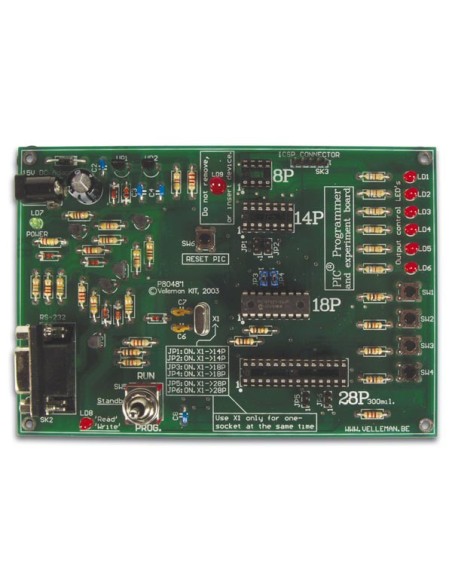

PIC PROGRAMMER & EXPERIMENT BOARD

Suitable for programming Microchip® FLASH PIC™ microcontrollers

Specification(s):

• supports 4 different 300 mil. PICs: 8p, 14p, 18p and 28p
• test buttons and LED indicators to carry out educational experiments, such as the enclosed programming examples
• easy connection to a PC through the serial port
• enclosed is a Flash Microcontroller (PIC16F627) that can be reprogrammed up to 1000 times for experimenting at will

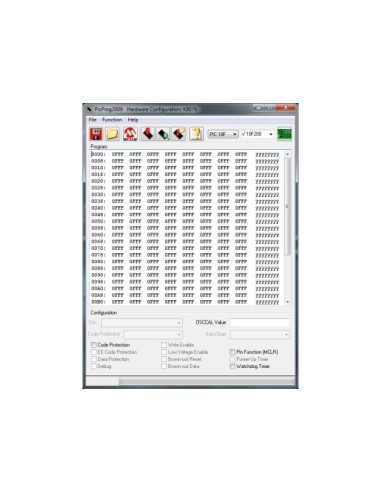

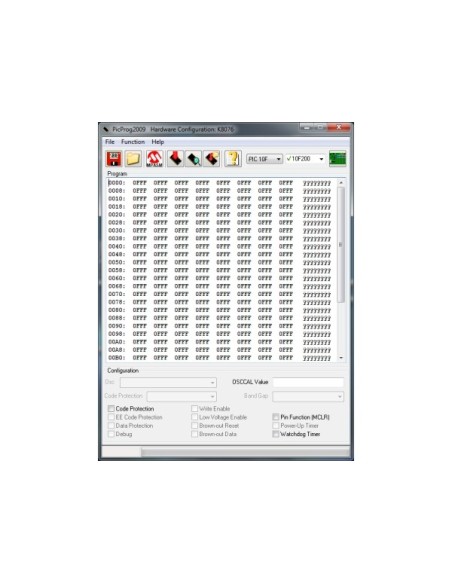

• software to compile and program your source code is available on our website
• minimum system requirements:
• IBM Compatible PC, Pentium or better
• Windows™ 95/98/ME/NT/2000/XP
• CDROM
• free serial RS232 port
• cable not included: e.g. [product name=CW014]CW014[/product]

Feature(s):

• power supply: 12Vdc unregulated or 15Vdc regulated / 300mA
• dimensions: 145 x 100mm / 5.75 x 4"

• EAN: 5410329238629
