SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W - 12 V
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W -...

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W - 12 V

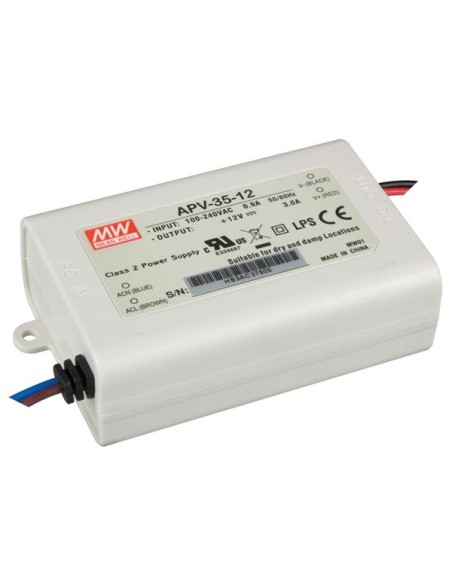

APV-35-12
Available
€24.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 35 W - 12 V


Specification(s):
  • constant voltage mode power supply
  • universal AC input / full range
  • resists 300 VAC surge input for 5 seconds
  • protections: short circuit / overload / over voltage
  • cooling by free air convection
  • compact size
  • fully isolated plastic case
  • IP30 design
  • pass LPS
  • suitable for LED lighting and moving sign applications
  • low cost, high reliability
  • 100% full load burn-in test
  • 2 years warranty
  • [b]for professional use only[/b]
  • This device must be installed by a qualified person.
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Enclosed
  • Electrical data
  • Output current rating: 3 A
  • Output power rating: 36 W
  • Technical data
  • Input efficiency: 83 %
  • Mounting type: Screw
  • Power supply series: APV
  • Environmental data
  • IP rating: IP30
  • Usage location: Indoor only
  • Power supply
  • Input current rating at 115 VAC: 0.75 A
  • Input current rating at 230 VAC: 0.5 A
  • Input voltage rating VAC: 90-264 V
  • Output voltage rating VDC: 12 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant voltage mode
  • Input voltage rating VDC: 127-370 V
  • Product basic info
  • Colour: White
  • Depth: 84 mm
  • Height: 29.5 mm
  • Weight: 180 g
  • Width: 57 mm
  • Material: ABS


  • EAN: 5410329581879
