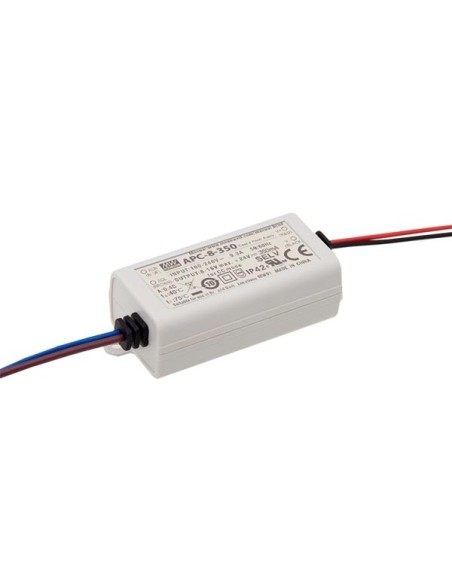

CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 350 mA - 8.05 W
APC-8-350
Available
€11.95
Tax included
CONSTANT CURRENT LED DRIVER - SINGLE OUTPUT - 350 mA - 8.05 W
Specification(s):
- constant current design
- universal AC input / full range
- class II power unit, no FG
- fully isolated plastic case
- IP42 design
- small and compact size
- cooling: free air convection
- protection: short circuit
- no load power consumption of <0.5W
- 100% full load burn-in test
- low cost / high reliability
- applications:
- indoor LED lighting
- LED decorative lighting
- LED office lighting
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 350 mA
- Output power rating: 8.05 W
- Technical data
- Series: APC
- Input efficiency: 81.5 %
- Dimmable: No
- Set-up options
- Dimming type: No dimming
- Environmental data
- IP rating: IP42
- Power supply
- Input current rating: 0.15 A
- Input voltage rating VAC: 90-264 V
- Output voltage rating VDC: 11-23 V
- Technology type: Constant current mode
- Input voltage rating VDC: 127-370 V
- Product basic info
- Colour: White
- Depth: 60 mm
- Height: 23.5 mm
- Weight: 40 g
- Width: 30 mm
- EAN: 5410329676490
