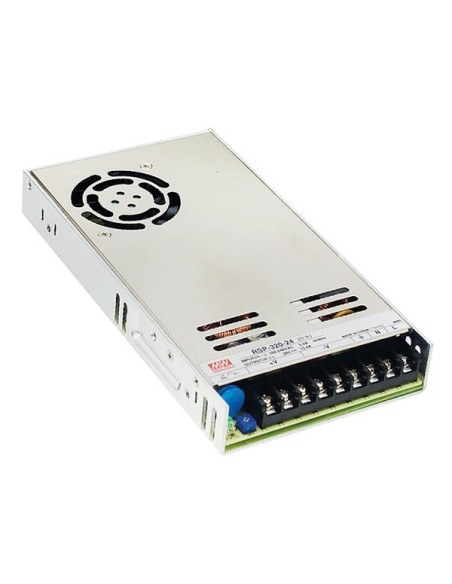

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 320 W - 12 V - CLOSED FRAME
RSP-320-12
Out-of-Stock
€96.96
Tax included
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 320 W - 12 V - CLOSED FRAME
Specification(s):
- universal AC input / full range
- built-in active PFC function, PF > 0.95
- high efficiency up to 90 %
- protection against: short circuit / overload / overvoltage / overheating
- forced air cooling by built-in fan with speed control
- 1U low profile 30 mm
- optional conformal coating models
- LED indicator for power on
- 3 years warranty
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Housing type: Enclosed
- Electrical data
- Output current rating: 26.7 A
- Output power rating: 320 W
- Technical data
- Input efficiency: 87 %
- Mounting type: Screw
- Power supply series: RSP
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 5 A
- Input current rating at 230 VAC: 2.5 A
- Input voltage rating VAC: 88-264 V
- Output voltage rating VDC: 12 V
- Range input frequency: 47-63 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 124-370 V
- Product basic info
- Colour: Grey
- Depth: 215 mm
- Height: 30 mm
- Weight: 900 g
- Width: 115 mm
- Material: Metal
- EAN: 8720207864398
