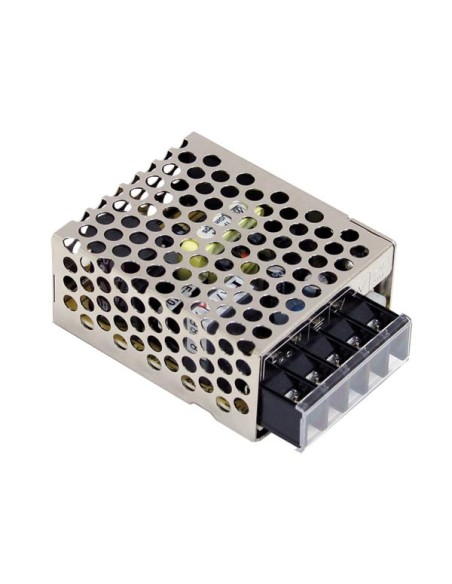

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 15 W - 12 V - CLOSED FRAME
RS-15-12
Available
€18.96
Tax included
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 15 W - 12 V - CLOSED FRAME
Specification(s):
- universal AC input / full range
- cooling: by free air convection
- LED indicator for power on
- 100 % full load burn-in test
- using 105 °C long-life electrolytic capacitors
- withstands 300 VAC surge input for 5 seconds
- high operating temperature up to 70 °C
- withstands 5G vibration test
- no load power consumption < 0.5 W
- high efficiency, long life and high reliability
- 3 years warranty
- protection against: short circuit / overload / overvoltage
- [b]for professional use only[/b]
- This device must be installed by a qualified person.
- Physical properties
- Number of outputs: 1
- Housing type: Open
- Electrical data
- Output current rating: 1.3 A
- Output power rating: 15 W
- Technical data
- Input efficiency: 81 %
- Mounting type: Screw
- Power supply series: RS
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 0.35 A
- Input current rating at 230 VAC: 0.25 A
- Input voltage rating VAC: 85-264 V
- Output voltage rating VDC: 12 V
- Range input frequency: 47-63 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 120-370 V
- Product basic info
- Colour: Metal
- Depth: 62.5 mm
- Height: 28 mm
- Weight: 130 g
- Width: 51 mm
- Material: Metal
- EAN: 8720207883276
