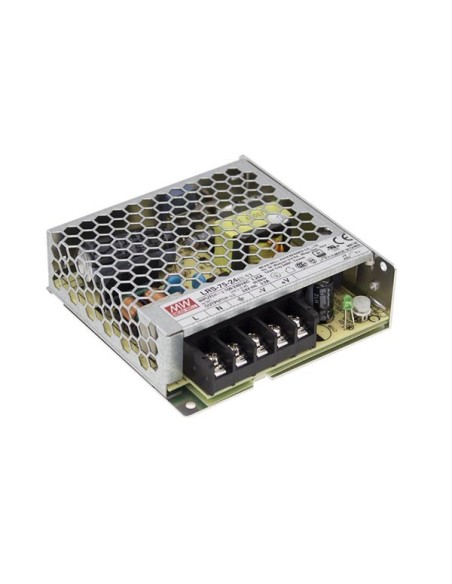

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 75 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 75...

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 75 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY

LRS-75-24
Available
€27.95
Tax included
ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 75 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY


Specification(s):
  • universal AC input / full range
  • withstands 300 VAC surge input for 5 seconds
  • no load power consumption < 0.2 W
  • miniature size and 1U low profile
  • high operating temperature up to 70°C
  • cooling by free air convection
  • operating altitude up to 5000 m
  • withstands 5G vibration test
  • high efficiency, long life and high reliability
  • 3 years warranty
  • protection against: short circuit / overload / overvoltage
  • 100% full load burn-in test
  • LED indicator for power ON
  • terminal block cover not included
  • [b]for professional use only[/b]
  • This device must be installed by a qualified person.
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Open
  • Electrical data
  • Output current rating: 3.2 A
  • Output power rating: 75 W
  • Technical data
  • Input efficiency: 90 %
  • Mounting type: Screw
  • Power supply series: LRS
  • Environmental data
  • IP rating: IP20
  • Usage location: Indoor only
  • Power supply
  • Input current rating at 115 VAC: 1.4 A
  • Input current rating at 230 VAC: 0.85 A
  • Input voltage rating VAC: 85-264 V
  • Output voltage rating VDC: 24 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant voltage mode
  • Input voltage rating VDC: 120-373 V
  • Product basic info
  • Colour: Metal
  • Depth: 99 mm
  • Height: 30 mm
  • Weight: 250 g
  • Width: 97 mm
  • Material: Metal


  • EAN: 8720207829373
