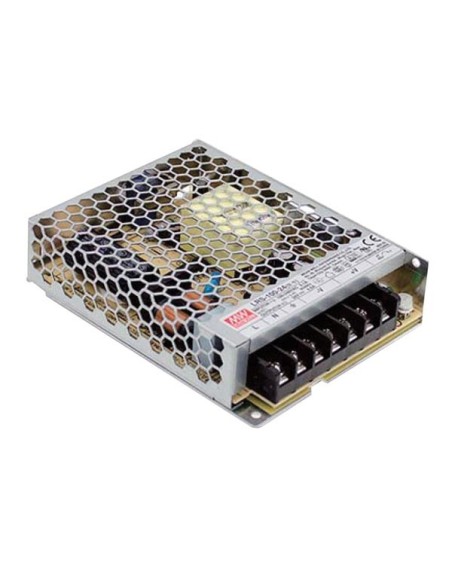

ITE SWITCHING POWER SUPPLY - SINGLE OUTPUT - 100 W - 24 V - CLOSED FRAME - FOR PROFESSIONAL USE ONLY

Reference LRS-100-24

Description
Product Details

Specification(s):

universal AC input / full range
cooling: by free air convection
LED indicator for power on
100 % full load burn-in test
withstands 300 VAC surge input for 5 seconds
high operating temperature up to 70 °C
withstands 5G vibration test
no load power consumption < 0.3 W
high efficiency, long life and high reliability
3 years warranty
protection against: short circuit / overload / overvoltage
miniature size and 1U low profile
operating altitude up to 5000 m
terminal block cover not included
[b]for professional use only[/b]
This device must be installed by a qualified person.

Feature(s):

Physical properties
Number of outputs: 1
Housing type: Open
Electrical data
Output current rating: 4.5 A
Output power rating: 100 W
Technical data
Input efficiency: 90 %
Mounting type: Screw
Power supply series: LRS
Environmental data
IP rating: IP20
Usage location: Indoor only
Power supply
Input current rating at 115 VAC: 1.9 A
Input current rating at 230 VAC: 1.2 A
Input voltage rating VAC: 85-264 V
Output voltage rating VDC: 24 V
Range input frequency: 47-63 Hz
Technology type: Constant voltage mode
Input voltage rating VDC: 120-373 V
Product basic info
Colour: Metal
Depth: 129 mm
Height: 30 mm
Weight: 340 g
Width: 97 mm
Material: Metal

EAN: 8720207887793
