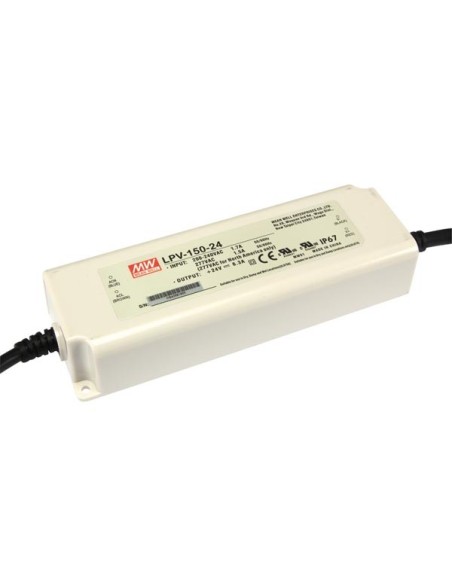

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W...

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V

LPV-150-24
Available
€55.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 150 W - 24 V


Specification(s):
  • constant voltage design
  • 180-305 VAC input only
  • fully encapsulated, IP67
  • class II power unit, no FG
  • protection against: short circuit / overload / overvoltage / over temperature
  • fully isolated plastic case
  • cooling: free air convection
  • 100 % full load burn-in test
  • low cost / high reliability
  • suitable for LED lighting and moving sign applications
  • suitable for use in dry, damp and wet locations
  • 2 years warranty
  • short circuit protection
  • overload protection
  • over voltage protection (255V)
  • thermal protection (80°)
  • waterproof protection IP67
Feature(s):
  • Physical properties
  • Number of outputs: 1
  • Housing type: Encapsulated
  • Electrical data
  • Output current rating: 6.3 A
  • Output power rating: 150 W
  • Technical data
  • Input efficiency: 89 %
  • Mounting type: Screw
  • Power supply series: LPV
  • Environmental data
  • IP rating: IP67
  • Usage location: Indoor & outdoor
  • Power supply
  • Input current rating at 115 VAC: 3 A
  • Input current rating at 227 VAC: 1.5 A
  • Input current rating at 230 VAC: 1.7 A
  • Input voltage rating VAC: 180-305 V
  • Output voltage rating VDC: 24 V
  • Range input frequency: 47-63 Hz
  • Technology type: Constant voltage mode
  • Input voltage rating VDC: 254-431 V
  • Product basic info
  • Colour: White
  • Depth: 191 mm
  • Height: 37.5 mm
  • Weight: 740 g
  • Width: 63 mm
  • Material: ABS


  • EAN: 8720207811583
