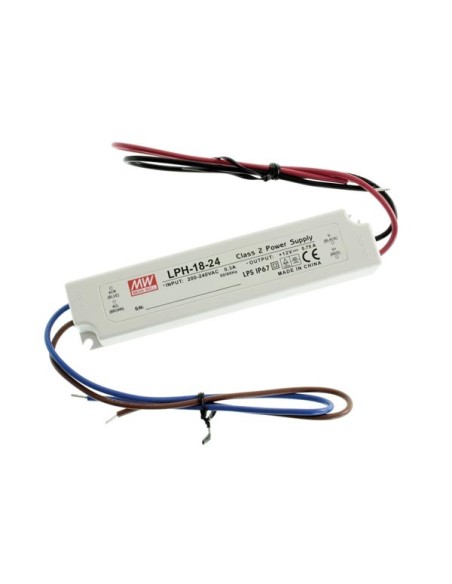

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 18 W - 24 V
LPH-18-24
Available
€16.95
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 18 W - 24 V
Specification(s):
- 180-264 VAC input only
- universal AC input / full range
- fully encapsulated, IP67
- class II power unit, no FG
- pass LPS
- cooling: free air convection
- 100 % full load burn-in test
- low cost / high reliability
- suitable for LED lighting and moving sign applications
- 2 years warranty
- short circuit protection
- overload protection
- over voltage protection (255V)
- thermal protection (80°)
- waterproof protection IP67
- Physical properties
- Number of outputs: 1
- Housing type: Encapsulated
- Electrical data
- Output current rating: 0.75 A
- Output power rating: 18 W
- Technical data
- Input efficiency: 85 %
- Mounting type: Screw
- Power supply series: LPH
- Environmental data
- IP rating: IP67
- Usage location: Indoor & outdoor
- Power supply
- Input current rating at 230 VAC: 0.3 A
- Input voltage rating VAC: 180-264 V
- Output voltage rating VDC: 24 V
- Range input frequency: 47-47 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 254-370 V
- Product basic info
- Colour: White
- Depth: 140 mm
- Height: 22 mm
- Weight: 175 g
- Width: 30 mm
- Material: ABS
- EAN: 8720207843614
