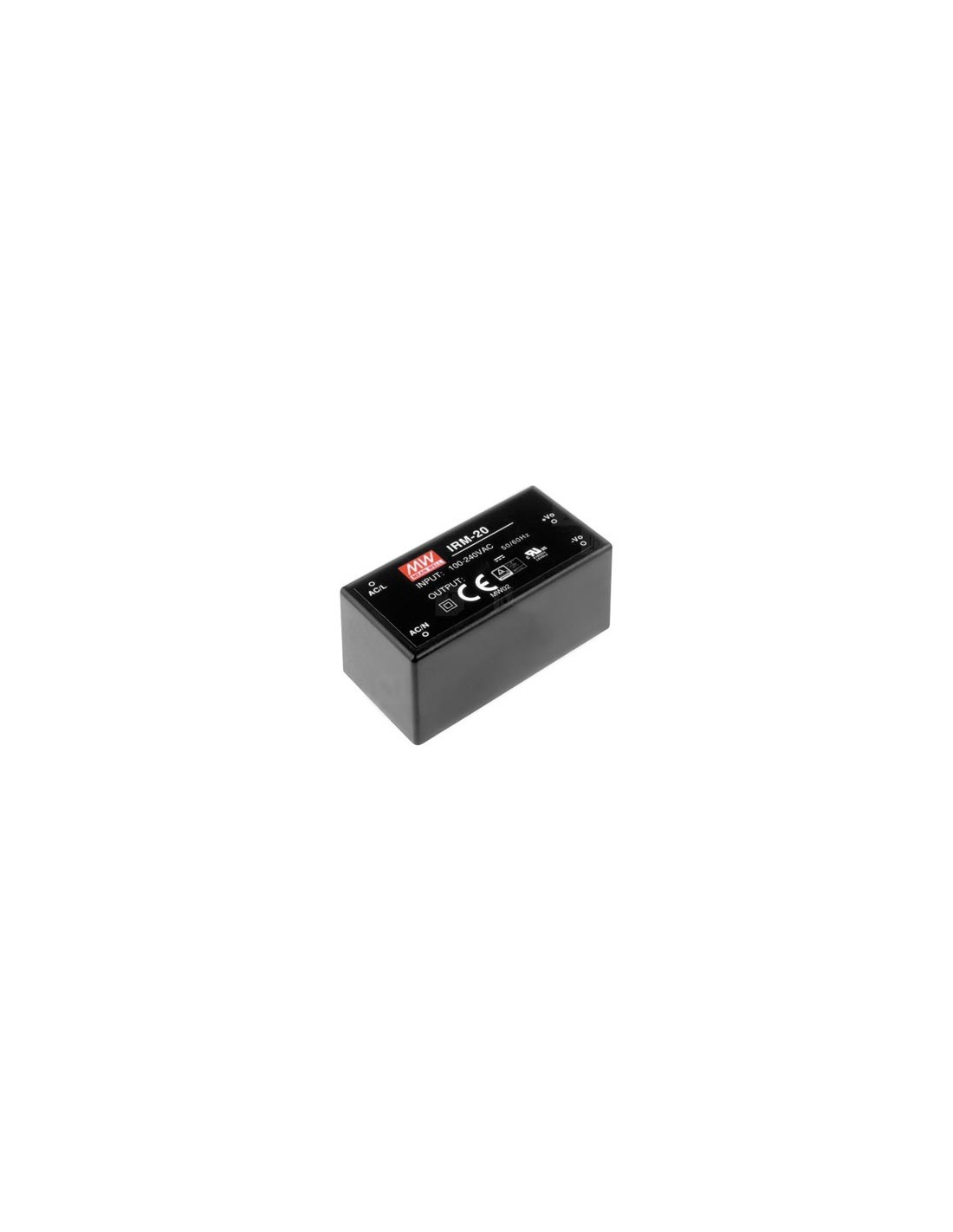

MEAN WELL - 20 W SINGLE OUTPUT ENCAPSULATED TYPE - 12 V
IRM-20-12
Available
€21.96
Tax included

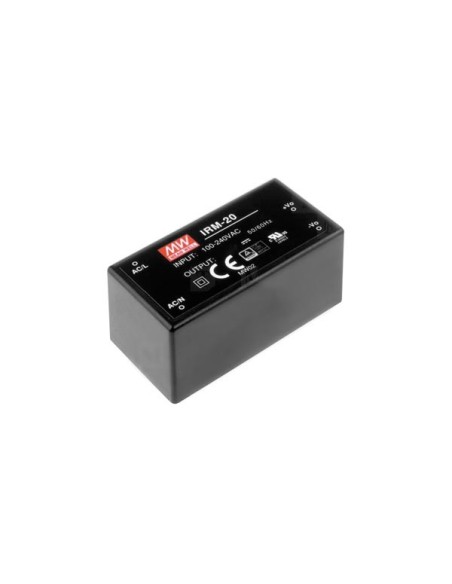

MEAN WELL - 20 W SINGLE OUTPUT ENCAPSULATED TYPE - 12 V
Specification(s):
- universal AC input - full range
- compact size
- protections: short circuit - overload - over voltage
- cooling by free air convection
- isolation class II
- no load power consumption < 0.1 W
- 100% full load burn-in test
- high reliability
- Physical properties
- Number of outputs: 1
- Housing type: Encapsulated
- Electrical data
- Output current rating: 1.8 A
- Output power rating: 20 W
- Technical data
- Input efficiency: 84 %
- Mounting type: Panel
- Power supply series: IRM
- Environmental data
- IP rating: IP20
- Usage location: Indoor only
- Power supply
- Input current rating at 115 VAC: 0.6 A
- Input current rating at 230 VAC: 0.4 A
- Input voltage rating VAC: 85-264 V
- Output voltage rating VDC: 12 V
- Range input frequency: 47-440 Hz
- Technology type: Constant voltage mode
- Input voltage rating VDC: 120-370 V
- Product basic info
- Colour: Black
- Depth: 52.4 mm
- Height: 24 mm
- Weight: 59 g
- Width: 27.2 mm
- Material: ABS
- EAN: 5410329633783
Tap to zoom
