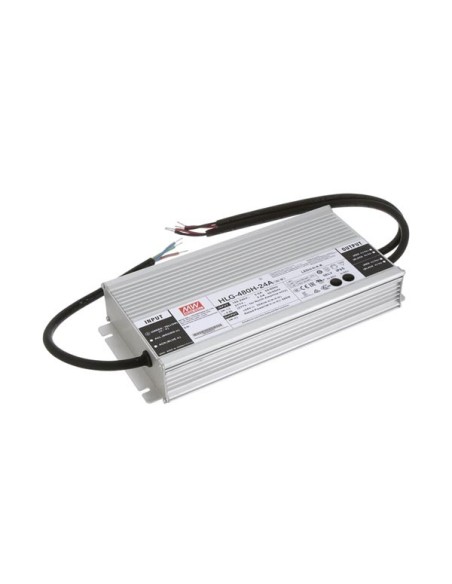

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 480 W - 24 V
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 480 W...

SWITCHING POWER SUPPLY - SINGLE OUTPUT - 480 W - 24 V

HLG-480H-24
Available
€239.01
Tax included
SWITCHING POWER SUPPLY - SINGLE OUTPUT - 480 W - 24 V


Specification(s):
  • Constant Voltage + Constant Current mode output
  • Metal housing with class design
  • Built-in active PFC function
  • IP67 / IP65 for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off, isolated design) ; smart timer
  • Typical lifetime> 62000 hours
  • 7 years warranty(Note.9
Feature(s):
  • output:
  • DC voltage: 24 V
  • constant current region: 12 V to 24 V
  • rated current: 20 A
  • rated power: 480 W
  • ripple & noise (max.) : 200m VP-p
  • voltage adj. range: 20.4 - 25.2 V
  • current adj. range: 10 - 20 A
  • voltage tolerance: ± 1.0 %
  • line regulation: ± 0.5 %
  • load regulation: ± 0.5 %
  • setup, rise time: 500ms, 80ms 115VAC/230VAC
  • input:
  • voltage range: 90-305 VAC 127-431 VDC
  • frequency range: 47-63 Hz
  • power factor: PF >/= 0.98/115 VAC PF >/= 0.97/230 VAC PF >/= 0.95/227 VAC at full load
  • total harmonic destortion: THD < 20%
  • efficiency (230 VAC): 94%
  • efficiency (277 VAC): 94.5%
  • ac current: 5 A / 115 VAC
  • inrush current: cold start 75 A / 230 VAC
  • leakage current: < 0.75 mA / 277 VAC
  • protection:
  • over current: 95-108%
  • short circuit: constant current limiting, recovers automatically after fault condition is removed
  • over voltage: 27-33 V
  • over temperature: shut down output voltage, re-power on to recovery
  • environment:
  • working temperature: -40 °C to 90°c
  • max. case temperature: 90°C
  • working humidity: 20 - 95% RH non-condensing
  • temperature coefficient: ± 0.02 % / °C (0 °C to 60 °C)
  • vibration: 10 to 500 Hz, 5 G 12 min. / 1 cycle, period for 72 min. each along X, Y, Z axes
  • safety:
  • safety standards: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;IP65 or IP67 EAC TP TC 004 ;KC61347 1, KC61347 2 13, J61347-1(H29), J61347-2-13 approved
  • withstand voltage: /P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
  • isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
  • EMC emission: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load 50%) ; BS EN/EN61000-3-3;GB17743, GB17625.1?,EAC TP TC 020;KC KN15,KN61547( ),J55015(H29)(for Blank/A-type)except for AB,Dx,D2-typ
  • EMC immunity: Compliance toBS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV,Line-Line 2KV), ;KC KN15,KN61547( ),J55015(H29)(for Blank/A-type)
  • others:
  • mtbf: 345.5K hrs min. Telcordia SR-332(Bellcore) ; 95.3K hrs min. MIL-HDBK-217F (25)°C
  • dimension: 262*125*43.8mm (L*W*H)
  • packing: 2.8Kg;4pcs/12.2Kg/0.55CUFT


  • EAN: 8720207831338
